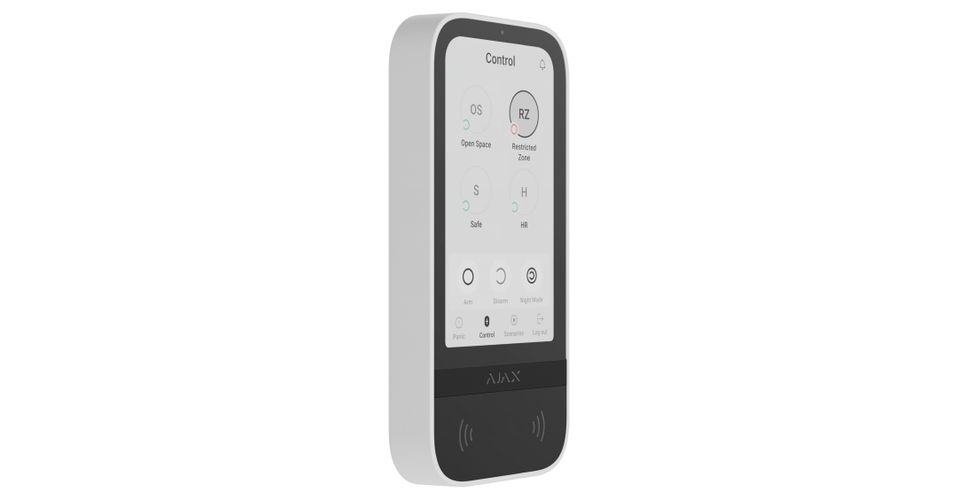

Wireless keypad Ajax Keypad TouchScreen (8EU) ASP 58455.148.WH1 (white)
Prekės kodas: AJKEYPADJ8EUW
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-08-08 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Wireless keypad Ajax Keypad TouchScreen (8EU) ASP 58455.148.WH1 (white)
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Wireless keypad
- Model: Ajax Keypad TouchScreen (8EU) ASP
- Color: White
- Connectivity: Wireless
- Touch screen
- Authentication methods: Pass, Tag, smartphones, codes
- Product code: 58455.148.WH1
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote configuration in the Ajax apps., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
- Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and noise interference.
- Radio signal modulationGFSK
- Radio signal rangeup to 5,500 ft, Between keypad and hub (or range extender) in an open space., Calculate the radio signal range at the facility
- Encrypted communicationAll the data stored and transmitted are protected by block encryption with a dynamic key.
- Frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Wings communication technologyProprietary wireless communication technology for transmitting the list of the groups, rooms and detectors to form the list of malfunctions., Key features:, Two-way communication., Block encryption featuring a dynamic key., Advanced sabotage protection., Reloading the data packages in case of transmission errors., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
- Radio signal rangeup to 5,600 ft, Between keypad and hub (or range extender) in an open space., Calculate the radio signal range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption with a dynamic key.
- Frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Display
- Diagonal5″
- Matrix typeIPS
- Resolution480 × 854 px
- Sensorcapacitive
- Brightness settingsautomatic, manual, If Auto Adjust is enabled, the display brightness depends on the light conditions. This saves battery power.
- Backlight lifetime30,000 hours, Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected.
- User interfaceDark Light
- Key features
- Panic buttonspanic, fire, auxiliary help, Sending an alarm or calling for help from the separate keypad tab.
- Controlcodes, Tag key fobs, Pass cards, smartphone (Bluetooth)
- Contactless accessDESFire® EV1, EV2 ISO14443-А (13.56 MHz)
- Access codesup to 200 personal codes, One code per each user. The number of personal access codes depends on the hub model ., 1 keypad code, Per each KeyPad TouchScreen.
- Duress codesup to 200 personal codes, One code per each user. The number of personal duress codes depends on the hub model ., 1 keypad code, Per each KeyPad TouchScreen.
- Codes for unregistered peopleup to 99 personal codes, For people who are not registered in the Ajax system. The number of such codes depends on the hub model .
- Arming without entering a codeThe enabled feature allows the user to arm the system without entering a code or presenting the access device.
- Group managementChanging the security mode of the groups to which the user has access from the keypad’s display., Learn more
- Scenarios managementA separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices., Learn more
- Indication of malfunctions and security modedisplay, logo, sound indication, If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays.
- Fire alarm mutingTurns off the fire detectors alarm, including the interconnected alarm., Learn more
- User pre-authorizationWhen the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad.
- Contactless authorization with a smartphoneA smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher.
- Auto screen wakeupThe keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app.
- Remote firmware updateWhen a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware., Learn more
- ACE Typetype B
- Sabotage protection
- Unauthorized access auto-lockThe keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app.
- Tamper alarmNotifications on attempts to detach the keypad from the surface or remove it from the mounting panel., Learn more
- Holding screwTo secure the keypad on SmartBracket.
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Battery6 × AA, Pre-installed.
- Typetype C
- Calculated battery lifeup to 1.5 years, With default settings and up to 4 interactions with a keypad per day.
- Keypad’s operating voltage range10.5–14 V⎓, up to 0.4 A, The batteries serve as a backup when the external power supply is connected.
- Keypad’s nominal operating voltage12 V⎓
- Quiescent keypad’s current consumption at nominal voltage46 μA
- Maximum keypad’s current consumption at nominal voltage1.5 mA
- Full battery capacity2,650 mAh
- Low battery voltage6.6 V⎓
- Low battery recovery voltage8.1 V⎓
- End-of-life battery voltage4.92 V⎓, Device is switched off.
- End-of-life battery capacity350 mAh
- Enclosure
- Dimensions6.77″ × 3.23″ × 1.02″
- Weight11.54 oz
- Operating temperature rangefrom 14℉ to 104℉
- Operating humidityup to 75%
Tiekėjo specifikacijos
Product code
AJKEYPADJ8EUW
Brand
AJAX
Category
Keyboards
Supplier's product code
AJKEYPADJ8EUW
Product ID
U-4625748
