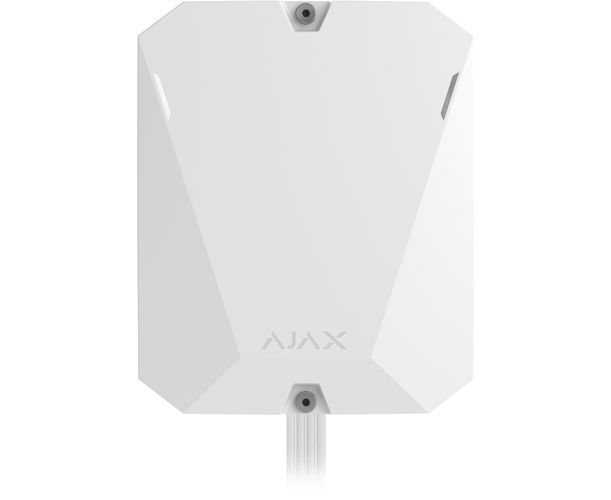

Wireless control panel Ajax Hub Hybrid (White)
Prekės kodas: AJHUBHYBRIDB
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-09-11 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Wireless control panel Ajax Hub Hybrid (White)
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Wireless control panel
- Model: Ajax Hub Hybrid
- Color: White
- Connectivity: 2 x SIM (2G/3G/4G), Ethernet, Wi-Fi
- Control: Wireless and wired
- Supported devices: Up to 100 (wireless + wired)
- Security zones: 25
- Users: Up to 50
- Scenarios: 32
- Capacity
- Ajax devicesup to 100, Wired and wireless devices in any proportion., 5 range extenders max., 10 sirens or keypads with a built-in siren max.
- Cameras or DVRsup to 25, RTSP support., Seamless integration with the Dahua, Hikvision,, Safire, EZVIZ, Uniview IP cameras and DVRs., Learn more
- Usersup to 50, Any number of admin users within the limit., PRO accounts for installers and monitoring companies., Access management for regular users.
- Automation scenariosup to 32, Alarm reactions., Scheduled actions., Security mode changing reactions., Temperature changing reactions., Humidity changing reactions., Reactions to changes in CO₂ concentration., Reactions to pressing the Button., Learn more
- Security groupsup to 9, Learn more
- Roomsup to 50, Learn more
- Event logup to 1000 events, Events are saved on the non-volatile onboard flash memory.
- Wired communication
- Fibra communication technologyProprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection., It features:, Two-way communication., Advanced anti-sabotage., Instant notifications., Remote configuration via the Ajax apps., Learn more
- Compatible wire4–core cable, Bus connection.
- Input8 bus lines, Compatible with Fibra devices only.
- Bus line lengthup to 6.500 ft, When using the U/UTP cat.5 twisted pair., Calculate the line length at the facility
- Power supply of devicesup to 14.4 W, For all connected wired devices., Calculate the power supply of devices
- Output voltage range23–25.1 V⎓
- TopologiesStar, Ring, In the line breakage event, the ring splits into two working segments, the devices continue to operate, and the system notifies a security company and users about the incident., Learn more
- Devices polling intervalfrom 12 to 300 s, Adjusted by PRO or user with admin rights in the Ajax app.
- Encrypted communication
- Wireless communication
- Jeweller communication technologyProprietary wireless communication technology to transmit alarms and events., It features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., nstant notifications., Remote configuration via the Ajax apps., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the region of sales.
- Maximum effective radiated power (ERP)up to 20 mW, Featured automatic power control to reduce power consumption and noise interference.
- Radio signal modulationGFSK
- Radio signal rangeup to 6.500 ft, Between the hub and connected devices (in an open space). Maximum range depends on the connected device., Calculate radio signal range at the facility
- Polling intervalfrom 12 to 300 s, Adjusted by PRO or user with admin rights in the Ajax app.
- Encrypted communicationAll the data stored and transmitted are protected by block encryption with a dynamic key.
- Radio frequency hoppingLearn more
- Wings communication technologyProprietary wireless communication technology to transmit photo verifications., It features:, Two-way communication., Block encryption featuring a dynamic key., Advanced anti-sabotage., Package re-uploading in case of transmission errors., Photo delivery check., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the region of sales.
- Radio signal rangeup to 5.600 ft, Between the hub and connected devices (in an open space). Maximum range depends on the connected device., Calculate radio signal range at the facility
- Radio frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Communication channels
- Ethernet1 × 8P8C socket, Up to 100 Mbps.
- Cellular2 × micro–SIM slot
- Cellular bands2G, (GSM900/DCS1800 (B3/B8)), 3G, (WCDMA 850/900/2100 (B1/B5/B8)), 4G/LTE, (FDD B1/B3/B5/B7/B8/B20)
- Automatic switching between communication channelsSwitching between SIMs — up to 4 minutes., Switching between 4G, 3G, and 2G networks of one SIM — instantly., Switching between Ethernet and SIM — instantly.
- Communication channels prioritization1. Ethernet 2. Cellular connection, Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet.
- Alarm Transmission System CategoriesSP2, SP5, DP3
- Control panel operation methodPass-through
- Signaling securityS2, Substitution security.
- Information securityI2
- Encryption algorithmAES 128
- Notifications
- Supported notification typesPush, SMS, Calls, Learn more
- Event typesAlarms, Malfunctions, Events, Security mode changing, The notification types are configured individually for each user. Notifications could be customized for A–F schemes according to EN 50131 requirements.
- Photo verification
- Photo verification typesPhoto by alarm, Photo by scenario, Photo on demand, Photo by schedule, The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher., More about photo by scenario, More about photo on demand, More about photo by schedule
- Photo delivery timeup to 9 s, by default., Learn more
- Photo resolutionup to 640 × 480 pixels, Depends on the detector.
- Number of photos in a series:from 1 to 5 pictures
- Monitoring
- Supported protocolsSurGard (Contact ID), SIA (DC-09), Other proprietary protocols, Learn more
- Event typesSystem alarms and events, Photo verifications, Panic button coordinates, CMS software with photo verification support
- Power supply
- Main power supply typeType A
- Device operating AC voltage range100–240 V~, 50/60 Hz, From the main power supply. Up to 10 W of mains power consumption.
- Device operating DC voltage range10.5–15 V⎓, From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4, 7, or 9 Ah.
- Autonomous operationup to 60 hours, Superior Hub Hybrid with a 7 Ah backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply., Learn more, The Battery Power Saver feature allows extending the backup battery life., Learn more
- Low battery voltage11.7 V⎓
- Low battery recovery voltage12.9 V⎓
- End of life battery voltage11 V⎓, Superior Hub Hybrid is switched off.
- Maximum output peak-to-peak ripple battery voltage220 mV⎓
- Minimum backup battery energy level in the charged state100 %
- Current consumption
- Maximum rated output0.53 A
- Maximum at nominal voltage200 mA
- Quiescent at nominal voltage130 mA
- Average*up to 93 mA, When GSM and Ethernet are enabled., up to 72 mA, When Ethernet is disabled., * From the backup battery after the loss of the main power supply.
- Casing
- Dimensions7.56″ × 9.37″ × 3.94″
- Weight of the white device29.52 oz
- Weight of the black device26.98 oz
- Operating temperature rangefrom 14°F to 104°F
- Operating humidityup to 75%
- Protection classIP30, IK06
Tiekėjo specifikacijos
Product code
AJHUBHYBRIDB
Brand
AJAX
Category
Hubs
Supplier's product code
AJHUBHYBRIDB
Product ID
U-4632224
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
