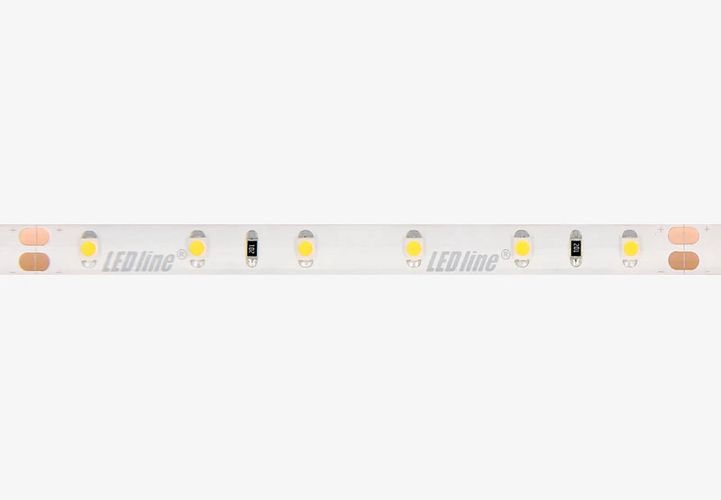

LED line® strip 300 SMD 24V 4000K 4,8W IP65

Name: LED line® strip 300 SMD 24V 4000K 4,8W IP65
Brand: LED line LITE
SKU: U-2390600
Price: 14.25 EUR
Availability: InStock

Prekės kodas: 240720

Prekinis ženklas

LED line LITE

Daugiau panašių prekių

Ieškoti "LED line® strip"

Pristatymo terminai

2024-05-08 Numatomas pristatymas užsakius dabar

Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.

Yra	Tiekėjo sandėlis

Pristatymas į namus (1-4d.d. jei prekes turime sandėlyje)

Perdavę prekes kurjeriui, informuosime Jus el. paštu.

Virš 30,00 €

(Užsakymams iki 1000 kg)

Nemokamai

Iki 30,00 €

(Užsakymams iki 3 kg)

2,99 €

Iki 30,00 €

(Užsakymams iki 1000 kg)

3,59 €

Pristatymas į paštomatą (1-4d.d. jei prekes turime sandėlyje)

Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 30.00 € pristatomi nemokamai.

1,99 €

Prekės aprašymas

Prekinis ženklas

LED line LITE

LED line® strip 300 SMD 24V 4000K 4,8W IP65

Specifikacijos

SKU

U-2390600

Barkodai

5901583240720

Prekinis ženklas

LED line LITE

NomNr

240720

Tiekėjo prekės aprašymas

LED quantity per 1m section of LED strip is 60. This item comes with a colour temperature of 4000 K Wavelength This LED strip is supplied in rolls of 5. This item is equipped with diodes of the following type: SMD3528. With current consumption of 0,2 it achieves a luminous efficacy of 83 lm/W whilst maintaining the power consumption of 4,8 W per metre. The luminous flux provided by 1m section of the LED strip is 400lm. This LED strip is powered by constant voltage of 24 DC. The LED's beam angle is 120 °. The amout of copper (expressed in ounces) used for this item's PCB is: 2.

The compatible dimmer type: PWM. The ingress protection from the upper side of the body is IP65 The ingress protection from the bottom side of the body is IP20. The Ra colour rendering index is 80 The CRI colour rendering index is . This product can be easily fitted to any surface. The cutting section is 10. Type of adhesive tape - 3M 300 LSE guarantees easy and the strongest adhesion to the substrate. The lifespan of each single diode which this item is equipped with is over 100000. Ambient temperature suitable for operation `-20 ÷ 45 °C. For indoor and outdoor useFor indoor use

Tiekėjo specifikacijos

NomNr

240720

Brand

LED line LITE

Supplier's product code

240720

Product ID

U-2390600

Ambient temperature suitable for operation

`-20 ÷ 45

Angle for useful luminous flux (EPREL)

Sphere 360 degrees

Beam angle

120

Beam angle in degrees (EPREL)

120

Chromaticity coordinates x i y (EPREL)

0.38|0.377

Colour consistency in McAdam ellipses

≤6

Colour of the light

White

Colour rendering index Ra

Colour-tuneable light source (EPREL)

Compatible dimmer type

PWM

Connected light source (EPREL)

Correlated colour temperature

4000

Current (1m)

0,2

Cutting section

Date of first placement on the market

01.07.2015

Dimmable function

Yes

Energy class

A+

Energy efficiency class 2019/2015

EPREL ID

631981

For indoor use

YES

Form of the product (EPREL)

Dotyczy 50cm taśmy

Full box quantity

GPC classification

10003056 - Accent lighting

GS1 unit

Height

IEC protection class

III

Is the product equipped with an integrated light source? (EPREL)

Is this product a light source? (EPREL)

Yes

Laminate (colour)

White

Laminate (thickness)

Lamp's warm-up time to 60%

LED quantity (1m)

LED strip (bottom) IP protection rating

LED strip (upper) IP protection rating

LED type

SMD3528

Lifespan

100000

Lifetime L70B50

50000

Luminous efficacy

Luminous flux (1m)

400lm

Mains or non- mains light source (EPREL)

NMLS

Master carton weight (kg)

14,4

Metres per roll

Minimum purchase quantity

Net content of the product

Non-directional or directional light source (EPREL)

NDLS

Not dimmable

TAK

Number of on/off cycles

50000

On-mode power Pon (EPREL)

Product code

240720

Product weight with packaging (g)

>0,7

R9 colour rendering index value (EPREL)

Status

Active (on sale)

Supply voltage range and voltage type

24 DC

Survival factor

0.9

The lumen maintenance factor

Type of adhesive tape

3M 300 LSE

Total luminous flux (EPREL)

200

Useful luminous flux Φuse (EPREL)

200

Warranty (years)

Wattage (1m)

4,8

Width

Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
