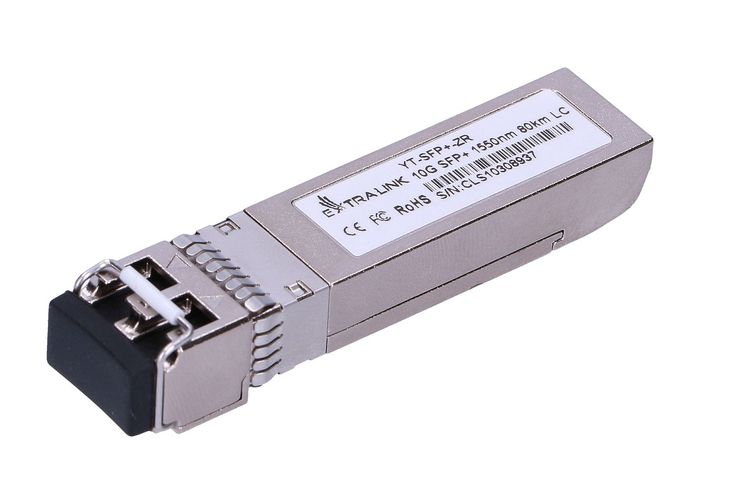

High-speed module SFP+ 10G 1550NM SM 40KM LC DUP
Extralink SFP+-ZR is designed for 8.5G/10G and 10GBE fibers. The single-mode SFP optical module consists of two sections, i.e. the transmitter section containing an EML laser and the receiver section consisting of an APD photo diode integrated with TIA. All modules meet the safety requirements for a Class I laser. The digital diagnostic functions of the SFP+-ZR are available via a 2-wire serial interface, allowing real-time access to operating parameters such as transceiver temperature, laser beam current, transmitted optical power, received optical power and power supply voltage of the SFP single-mode insert. The SFP+ 10G module can operate with a data transfer rate of ≤4.25 Gbps or from 9.95 Gbps to 11.3 Gbps.
Special features
Special features
- Compliance with SFF-8431 and IEE802.3ae
- Selectable data rate: ≤4.25 Gbps or 9.95 Gbps to 11.3 Gbps
- Cooled EML transmitter and APD receiver
- Length of connection up to 40 km
- Low power dissipation, typically 1.4 W, maximum 2 W
- Operating temperature of the housing from -5ºC to 70ºC
- Single 3.3 V supply
- Monitoring of module temperature, supply voltage, current, transmitting optical power, receiving optical power
- RoHS compliant and unleaded
| Output connector | LC |
| SFP module - port speed | 10 Gbps |
| Transmission distance | Over 20km |
| Fiber optic connector | LC (UPC) |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 |
| Multi-mode fiber (MMF) supported | No |
| Number of products included | 500 |
| Operating relative humidity (H-H) | 0 - 85 |
| Operating temperature (T-T) | -5 - 70 |
| Package depth | 440 |
| Package height | 230 |
| Package type | Box |
| Package volume | 0.11 |
| Package width | 355 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Storage temperature (T-T) | -40 - 85 |
| Type of SFP duplex | Physical (two fibers) |
| User guide | No |
| Wavelength | 1550 nm |
| Wavelength | 1550 |
