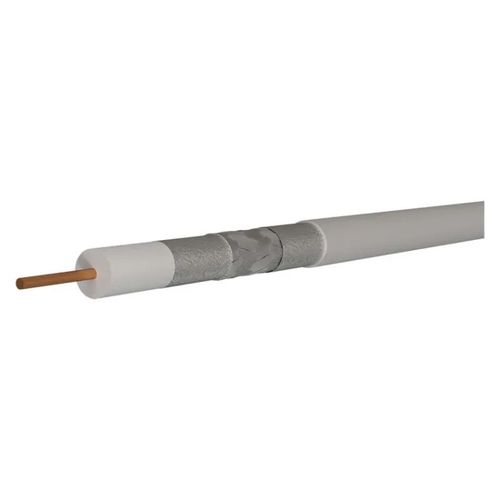

Coaxial Cable CB113 LSZH 250m, EMOS

Prekės kodas: S5269
no gallery

Coaxial Cable CB113 LSZH 250m, EMOS

Prekės kodas: S5269
EMOS
Prekinis ženklasEMOS
Daugiau panašių prekiųIeškoti "Coaxial Cable CB113"

Kainų ribos

KiekisKaina su PVM (vnt.)
1+
0.92
didmeninis

Min. kiekis: 250

Kartotinis: 250

Iš viso:

230.00
2024-04-25 Numatomas pristatymas užsakius dabar

Pristatymo terminai

2024-04-25 Numatomas pristatymas užsakius dabar

Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.

YraYra

Tiekėjo sandėlis

lemona shop

Atsiėmimas LEMONA parduotuvėje

Atsiėmimas LEMONA parduotuvėje Nemokamai

Užsakymai apdorojami ir vykdomi darbo dienomis nuo 8:00 iki 17:00.
Kai jūsų užsakymas bus paruoštas atsiėmimui, informuosime Jus SMS žinute ir el. paštu. Parduotuvių darbo laiką užsakymų atsiėmimui rasite čia.
home delivery

Pristatymas į namus

Pristatymas į namus

Perdavę prekes kurjeriui, informuosime Jus el. paštu.

Virš 30,00 €

(Užsakymams iki 1000 kg)

Nemokamai

Iki 30,00 €

(Užsakymams iki 3 kg)

2,99 €

Iki 30,00 €

(Užsakymams iki 1000 kg)

3,59 €

Shipping parcel

Pristatymas į paštomatą

Pristatymas į paštomatą

Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 30.00 € pristatomi nemokamai.

1,99 €

Prekės aprašymas

EMOS
Prekinis ženklasEMOS
Coaxial Cable CB113 LSZH 250m, EMOS

Specifikacijos

SKUU-2337325
Barkodai8592920081976
Prekinis ženklasEMOS
NomNrS5269

Tiekėjo prekės aprašymas

Tiekėjo specifikacijos

APE = air dielectricno
capacity (pF/m)52
coaxial cable typeCB113 LSZH
color cable sheath > Cable sheath colorwhite
colour of insulation of power conductorsnot stated
construction of power conductorsnot stated
cross-section of power conductorsnot stated
dangerous substancesnone
diameter of cable sheath7,05 mm
diameter of the inner conductor1.13 mm
dielectric type, diameterFPE 4.8 mm
factor of shortening0.85
FPE = Foam dielectricyes
impedance75 Ohm
insulation of power conductorsnot stated
insulation resistance between the cores at 20 °C (MOhm/km)1 000
intended useunit connections, resistant to interference, CLASS A+
material of the cable jacketLSZH
material of the inner conductorcopper (Cu)
material of the shieldingtinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz19.3
max. attenuation at 20 °C (dB/100 m) 10 MHz2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz5.8
max. attenuation at 20 °C (dB/100 m) 2 000 MHz29.5
max. attenuation at 20 °C (dB/100 m) 450 MHz12.5
max. attenuation at 20 °C (dB/100 m) 650 MHz15.3
max. attenuation at 20 °C (dB/100 m) 860 MHz18.5
max. DC resistance at 20 °C (Ohm/km) - inner core18.5
max. DC resistance at 20 °C (Ohm/km) - outer core38.5
min. bend radius single/multiple35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz30
min. return loss at 20 °C (dB) 600 to 900 MHz23
min. return loss at 20°C (dB) 300 to 600 MHz25
min. shielding attenuation (dB) 10 ~ 800 MHz>95
mounting temperature+5 °C to +60 °C
number of braiding wires144× 0,12 mm
number of shieldings3
packaging250 m, paper reel box
PE = polyethylene dielectricFoamed PE
PES = layer filmno
reaction to the fireEca
recommended types of connectors - F pressing*K7220
recommended types of connectors - F screwing*K7351
shielding diameter144× 0,12 mm2
shielding I. foil1× Al/PES
shielding II. foilAl/PES spiral
shielding protection>115 %
storage temperature-20 °C to +75 °C
suitable for outdoor useno
type of packaging - labeled yardage > Type of packaging - labeled meters1–250 m
type of packaging - length250 m
type of packaging - type of coilPVC reel in box, 250 m
UV resistantno
warranty period5 years
weight (kg/km)43.5
NomNrS5269
BrandEMOS
Supplier's product code S5269
Product IDU-2337325
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
