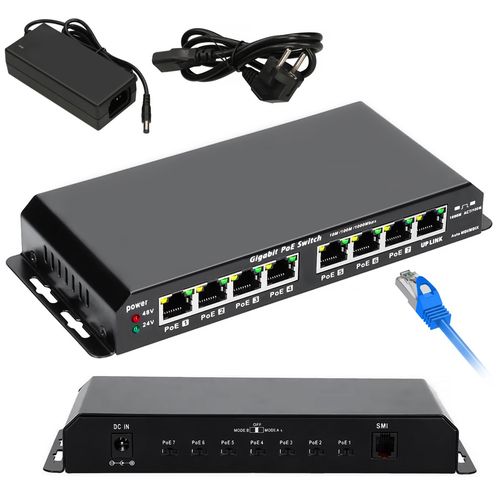

Extralink KRATOS - 8 port switch with 7 PoE ports
EXTRALINK KRATOS combines a small, high performance 8-port switch with 10/100/1000Mb/s throughput with 7 PoE ports. The switch uses an external power supply with a voltage range from 18V to 57V. All 7 PoE ports, using standard Cat 5/5e/6 Ethernet cables, can provide power up to 30W and data transmission at 1000Mbps -.
Power over Ethernet
The KRATOS switch allows you to transfer data and power to the connected devices with one Ethernet cable. It is a power supply device and is compatible with devices that meet the requirements of the Passive PoE standard, which allows users to connect to the PoE switch: wireless access points, VOIP phones, IP cameras, etc., without the need for additional power supply.
Main features:
Main features:
- 8 ports 10/100/1000Mbps, ports 1-7 with PoE capability
- 24V power supply 60W included, possibility of using a power supply up to 57V
- Ports 1-7 have the ability to power PoE in two different modes: Mode A - power and data on contacts 1/2 (-) and 3/6 (+), Mode B - power on contacts 4/5 (+) and 7/8 (-) with data on contacts 1/2 and 3/6.
- Dual PTC fuses on each PoE output port: 650mA per port for Mode A, 1000mA per port for Mode B
- 2 x 2.1 mm jack type power connector
- LED for operation at 24V or 48V
- Maximum input current - 2,5 A
- 1x Uplink port 10/100/1000Mbps, no PoE voltage at output , Auto MDI/MDIX
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 8x [10/100/1000M (RJ45)] |
| Number of PoE ports | 8x [Passive PoE 24V (1G)] |
| 10G support | No |
| AC input frequency | 50 - 60 |
| AC input voltage | 100 - 240 |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Certification | CE & FCC |
| Cloud-managed | No |
| Configuring Location Settings (CLI) | No |
| Depth | 82 |
| Form factor | 1U |
| Height | 27 |
| Housing material | Metal |
| Input current | 2.5 |
| LED indicators | Yes |
| MAC address table | 4096 |
| Management | No |
| Networking standards | IEEE 802.3af |
| Operating relative humidity (H-H) | 10 - 80 |
| Operating temperature (T-T) | 0 - 40 |
| Output power | 90 |
| Output voltage | 18 - 56 |
| Port mirroring | No |
| Power (W) | 60 |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 |
| Power over Ethernet (PoE) voltage range | 24 - 48 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | No |
| Rack mounting | No |
| Redundant fans support | No |
| Reset button | Yes |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 16 |
| Switching layer | 2 |
| System event log | No |
| Temperature sensor | No |
| Total Power over Ethernet (PoE) budget | 60 |
| Traffic classification | No |
| Traffic shaping | No |
| Type of case | Desktop |
| User operation log | No |
| Web-based management | No |
| Weight | 500 |
| Width | 192 |
