Prekės aprašymas

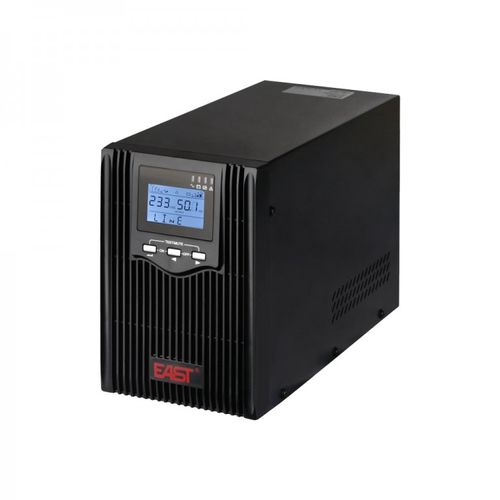

East EA630 UPS (tower, LCD, 3000VA/2400 W)
Specifikacijos
Tiekėjo prekės aprašymas
- Connections: 3 x Schuko, 3 x C13, USB, 2 x RJ11
- Pure sine wave output
- DSP digital control
- Boost and buck AVR for voltage stabilization
- Auto sensing frequency
- Adjustable charging current and battery shutdown point
- Settable ECO mode and no-load shutdown
- Humanized alarm system
- Power-on self test
- Cold start
- Auto restart when mains power is restored
- Intelligent battery management
- Short circuit and overload protection
- Automatic charging in OFF mode
- USB & RJ45, AS400 / SNMP (optional) communication port
- DC Input
- Capasity3000 VA / 2400 W
- Rated voltage48V
- AC INPUT
- AC input range (bypass mode)0 - 121/ 132/ 138/ 144 Vac for 100/ 110/ 115 / 120 Vac ± 10 Vac 0 - 242 / 264 / 276 / 288 Vac for 200/ 220/ 230/ 240 Vac ± 10 Vac
- AC input range (mains mode)100 V: 70 - 130 Vac 110 V: 80 - 140 Vac 115 V: 85 - 145 Vac 120 V: 90 - 150 Vac 200 V: 145 - 260 Vac 220 V: 165 - 280 Vac 230 V: 175 - 290 Vac 240 V: 185 - 300 Vac
- Frequency input range50 / 60 Hz (auto-sensing), 50 / 60 Hz ± 5% - 15%
- Output
- Inverter output range110V / 120 Vac: 220V / 240 Vac
- AC output range (bypass mode)0 - 121/132/138/144 Vac for 100/110/115 /120 Vac ± 10 Vac 0 - 242 / 264 / 276 / 288 Vac for 200 / 220 / 230 V / 240 Vac ± 10 Vac
- AC output range (mains mode)100V:90 - 110 Vac 110V: 99 - 121 Vac 115 V: 103 - 126 Vac 120 V: 108 - 132 Vac 200 V: 166 - 226 Vac 220 V: 188 - 245 Vac 230 V: 199 - 254 Vac 240 V: 210 - 264 Vac
- Output frequency50 / 60 Hz ± 0.3 Hz (settable)
- WaveformPure sine wave
- Inverter efficiencyMax. 85%
- Energy saving modeSettable (< 3% load) , enter in 80 s
- No-load shutdownSettable (< 3% load), shut down in 80 s
- Transfer time10ms
- THDV (resistive load)5%
- Protections Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature
- Overload (mains mode)110% for 120 s, 125% for 60 s, 150% for 10 s (transfer to bypass mode)
- Overload (mains mode)110% for 60 s, 125% for 10 s, 150% for 5 s (shut down directly
- Battery
- Inbuilt battery (standard model)12 V/9 Ahx 4
- Charging currentLong time model (H): 10 A (default); < 10 A, set step 1 A; _- 10 A, set step 5 A
- Equalizing charge voltageSingle battery 14.1 Vdc (default), 13.6 - 15 Vdc adjustable
- Low voltage alarm pointSingle battery 13.5 Vdc (default), 13.2 - 14.6 Vdc adjustable
- Low voltage shutdown pointSingle battery 10.2 Vdc (default), 9.6 - 11.5 Vdc adjustable
- Other
- Operating humidity and temperature5°C - 40°C
- Noise level5 55dB (1m)
- Dimensions without package (mm) W × D × H190 x 467 x 335.5
- Dimensions with package (mm) W × D × H320 x 592 x 462
- Weight26.7 kg
Tiekėjo specifikacijos
Product code
UPSEA630RT2400W
Category
Power Supply Un
Brand
EAST
Supplier's product code
UPSEA630RT2400W
Product ID
U-3842537
