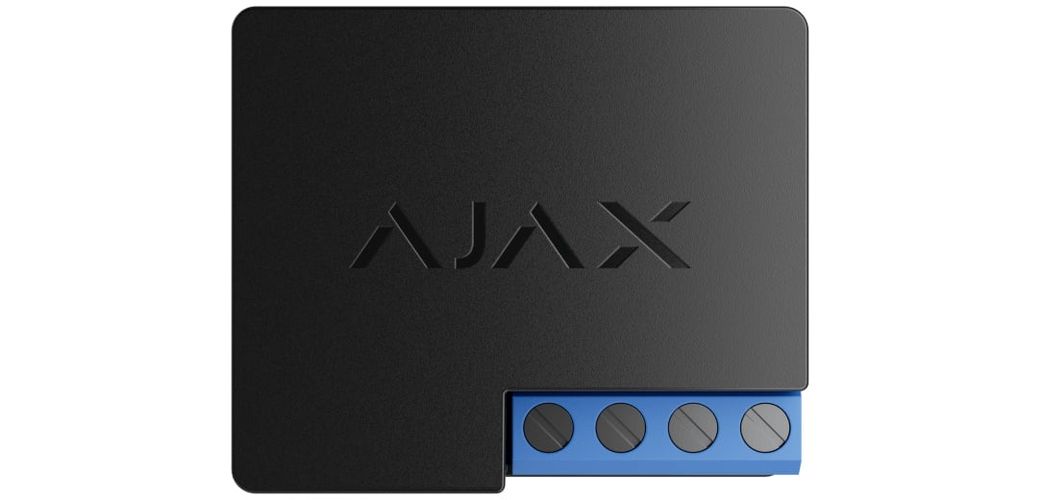

Wireless relay module Ajax WallSwitch 38189.13.BL1 (230V, 13A)
Номер продукта: AJWALLSWITCH
Сроки доставки
2025-07-31 Планируемая доставка, если Вы закажете сейчас
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 70,00 € (Заказы до 1000 кг) | Бесплатно |
К 70,00 € (Заказы до 3 кг) | 3,49 |
К 70,00 € (Заказы до 1000 кг) | 3,49 - 4,99 € |
Получение в почтомате
Получение в почтомате
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
2,39
Описание товара
Wireless relay module Ajax WallSwitch 38189.13.BL1 (230V, 13A)
Спецификации
Описание товара от поставщика
- Type: Wireless relay module
- Model: Ajax WallSwitch
- Voltage: 230V
- Current: 13A
- Function: Remote control of 110/230 V~ power supply
- Product code: 38189.13.BL1
- Power supply
- Power supply voltage110–230 V ± 10%, 50/60 Hz
- Maximum continuous load current13 A
- Output powerup to 3.0 kW (resistive load at 230 V~), up to 1.5 kW (resistive load at 110 V~)
- Average consumptionup to 1 W
- Current protectionmore than 11 A (when Overcurrent protection is enabled), more than 13 A (when Overcurrent protection is disabled), Once the current exceeds the specified level, the device turns off automatically.
- Voltage protection for 230 V~ mains electricitymin: 184 V~, max: 253 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
- Voltage protection for 110 V~ mains electricitymin: 92 V~, max: 132 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
- Temperature protectionover 149 °F, If protection is triggered, the device turns off.
- Electric shock protection classClass II
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
- Maximum effective radiated power (ERP)up to 25 mW
- Radio signal modulationGFSK
- Radio communication rangeup to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Key features
- Control via smartphoneThe user can set up the relay configurations and receive notifications in an Ajax app.
- Automation scenariosBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO 2 concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
- Energy consumption monitorControl of the current, voltage, power, and electric energy consumed by connected appliances.
- Adjustable pulse duration 2from 1 to 255 s
- Operation modespulse 2, bistable, 2 Available on devices with firmware version 5.54.1.0 or later manufactured after March 5, 2020.
- Contact statenormally open, normally closed
- Sabotage protection
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Enclosure
- Dimensions1.54″ × 1.3″ × 0.71″
- Weight1.06 oz
- Operating temperature rangefrom 32 °F to 147 °F
- Operating humidityup to 75% with no condensation
- Protection classIP20
Параметры товара поставщика
Product code
AJWALLSWITCH
Brand
AJAX
Category
Smart devices
Supplier's product code
AJWALLSWITCH
Product ID
U-4625765
Информация, предоставленная поставщиком, может отличаться от самого продукта. Если вы заметили неточности, сообщите нам об этом, написав на адрес [email protected].
