MERRYTEK Daylight Harvesting photocell 1-10V

MERRYTEK Daylight Harvesting photocell 1-10V

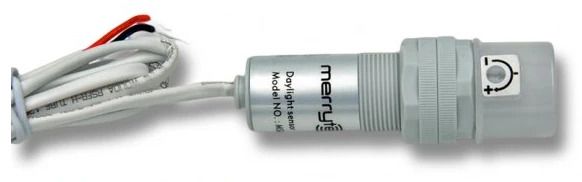

MERRYTEK Photocell Daylight Harvesting 1-10V Using the MERRYTEK MS01 solution enables effective reduction of electrical energy consumption. It is a standalone lighting controller with the Daylight Harvesting function, which intuitively controls dimmable LED fixtures with a 1-10V input. Thanks to it, the amount of LED light is adjusted to the external light, helping to achieve an optimal level of working illumination and reduce power consumption. With the built-in potentiometer, we can set the desired illumination level (1-100%) for a specific workstation. The sensor will automatically dim or brighten the light to maintain the desired conditions, which positively affects work comfort. The maximum load of one sensor is 50mA, and the mounting height reaches up to 4 meters. There is also an option to connect it with any On/Off motion sensor (with a 1-10V input). It operates only when needed, further contributing to energy savings. Main advantages: •Automatic adjustment of luminaire brightness depending on the level of daylight •Integrated photocell •Brightness adjustment using a physical potentiometer •One sensor controls multiple luminaires •Can be connected to an On/Off motion sensor •Mounting height up to 4 meters •Very small size •5.8GHz frequency ensures resistance to interference from other wireless networks (WiFi, BT, 5G, etc.) •5-year warranty Recommended for: • LED panels • LED ceiling lights • Linear lighting • All 1-10V lamps • On/off or dimm motion sensors equipped with a 1-10V control input   NOTE! This sensor does not switch on/off the lamp by itself - it controlls light intensity and serves only as an external photocell for LED power supplies, motion sensors, and lamps with a 1-10V dimming system.
