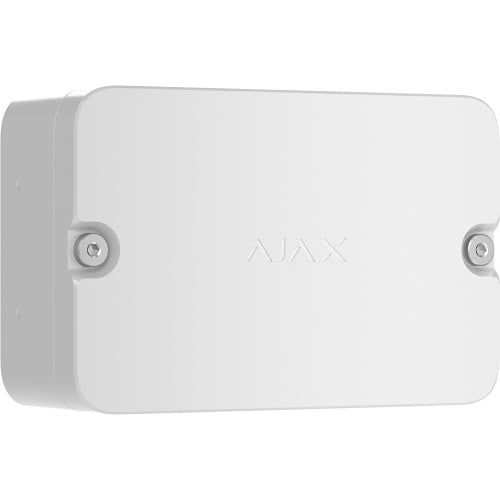

Wireless module Ajax EN54 I/O Module (2x2) 124590.280.WH1 (white, 2×inputs/outputs)
Product Code: AJAXEN54IOMODULEB
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-12-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Wireless module Ajax EN54 I/O Module (2x2) 124590.280.WH1 (white, 2×inputs/outputs)
Specifications
Supplier product description
- Type: Wireless I/O module
- Model: Ajax EN54 I/O Module (2x2) Jeweller
- Color: White
- Inputs/Outputs: 2 x inputs, 2 x outputs
- Communication: Jeweller protocol, up to 1700 m range (open space)
- Power: Supports AC or DC, battery powered (up to 5 years)
- Integration: Connects third-party devices (detectors, sirens, relays, HVAC, etc.)
- Features: Automated response, smart integration, selectable event types
- Installation: Hassle-free with QR code, versatile cable routing
- Protection: IP21C housing with EOL resistors included
- General
- Product nameAjax EN54 I/O Module (2X2) Jeweller
- TypeWireless addressable module with two inputs and two outputs for fire alarm systems
- Compliance standardsEN 54-18, EN 54-25
- Inputs2 individually isolated inputs, support AC or DC
- Input configurationSupports NO, NC, EOL, 2EOL, and 3EOL connection types
- Outputs2 outputs for controlling third-party equipment (doors, locks, lights, sirens, etc.)
- Power supplyDoes not require external power; does not supply power to connected devices
- Communication protocolJeweller (two-way encrypted radio)
- Communication rangeUp to 1,700 m in open space
- Range extensionCompatible with Ajax range extenders (sold separately)
- Radio featuresAutomatic power adjustment, frequency hopping, connection loss detection
- Battery lifeUp to 5 years
- Battery replacementQuick and tool-free
- Low battery alertShown early via Ajax apps
- IntegrationConnects third-party detectors, control panels, HVAC, etc.
- Control methodConfigurable and controllable via Ajax apps
- InstallationTool-free pairing via QR code; versatile cable routing (back, sides, top, bottom)
- Protective housingYes, to prevent damage during installation
- Included accessoriesEOL resistors included
- ApplicationThird-party system integration into Ajax fire alarm architecture
Supplier parameters
Supplier's product code
AJAXEN54IOMODULEB
Product ID
U-4858766
Category
Accesories
Product code
AJAXEN54IOMODULEB
Brand
AJAX
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
