Product description

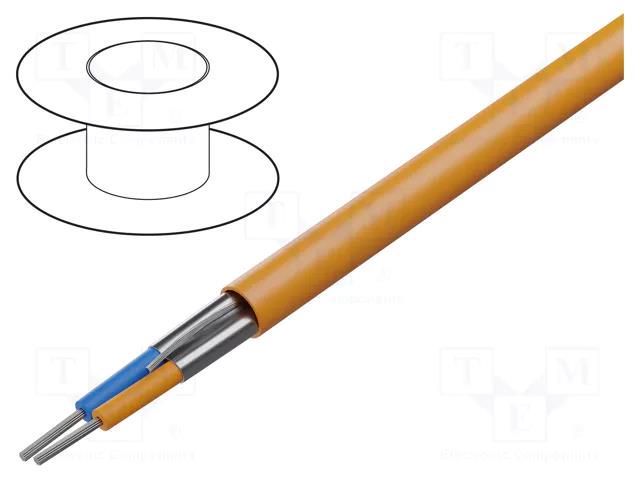

Wire; 1x2x18AWG; FIELDBUS,PROFIBUS,outdoor; stranded; Cu; orange BELDEN
Useful information
Specifications
Supplier product description
Wire; 1x2x18AWG; FIELDBUS,PROFIBUS,outdoor; stranded; Cu; orange
Useful information
Supplier parameters
Product code
3076F.0031000
Supplier's product code
3076F.0031000
Product ID
U-3873034
Cable application
outdoor
Cable external diameter
7.11mm
Cable features
twisted pair conductors
Cable structure
1x2x18AWG
Conform to the norm
UL 1685
Core diameter
18AWG
Core structure
stranded
CPR standard
E<sub>ca</sub>
Ground
tinned copper strand 20AWG
Information
The UL Label and Mark on full factory packaging only
Insulation colour
orange
Kind of core
Cu
Kind of material
flame retardant
Manufacturer
BELDEN
No. of pairs
1
Number of cores
2
Operating temperature
-40...105°C
Package contents
305m
Package contents - ft
1000ft
Rated voltage
300V
Resistance to
most of oils
Shield structure
Al-PET foil
Type of wire
data transmission
Wire insulation material
PVC
Brand
BELDEN
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
