Connector: PCB terminal block; terminal; 24A; 250V; angled 90° DEGSON ELECTRONICS
Product Code: DG300-5.0-2P11

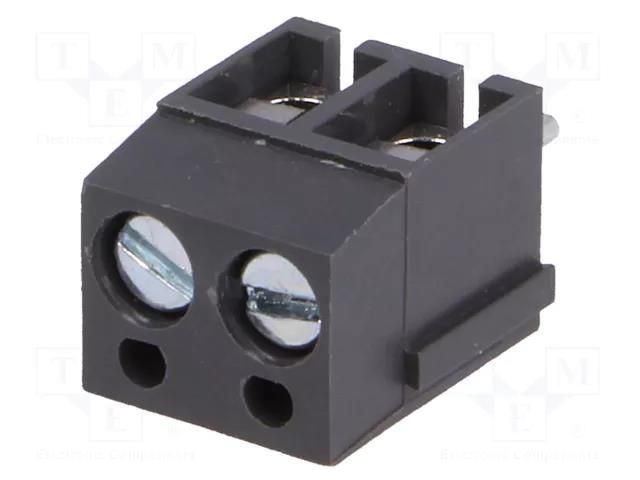

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Connector: PCB terminal block; terminal; 24A; 250V; angled 90° DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 24A; 250V; angled 90°
Useful information
Supplier parameters
Product code
DG300-5.0-2P11
Brand
DEGSON ELECTRONICS
Supplier's product code
DG300-5.0-2P11
Product ID
U-163466
Body material
PBT
Colour
grey
Conform to the norm
VDE
Connector
terminal
Connector pinout layout
1x2
Connector variant
with wire protector
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5mm
Current rating
24A
Depth
9mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
12.6mm
Length
10mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
on PCBs
Number of ways
2
Operating temperature
-30...120°C
Rated voltage
250V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
2.5mm<sup>2</sup>
Wire size
22AWG...14AWG
