Switching power supply 24V 240W 10A, DIN rail-mounted, MEAN WELL, NDR-240-24
Product Code: MB1024VDINMEANWELL

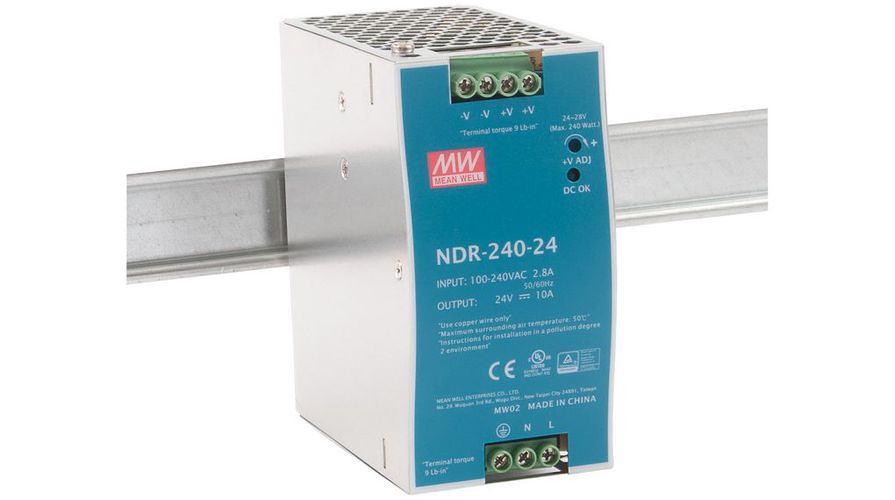

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-30 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | €3.49 |
To €70.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Switching power supply 24V 240W 10A, DIN rail-mounted, MEAN WELL, NDR-240-24
Specifications
Supplier product description
- Type: Switching power supply
- Model: NDR-240-24
- Input voltage: 90-264 VAC
- Output voltage: 24-28 VDC
- Power: 240 W
- Current: 10 A
- Temperature range: -20°C ÷ +70°C
- Power factor correction (PFC): Yes
- Mounting: On DIN 35 mm rail
- Adjustment: With potentiometer
- Protection class: OVC III
- Dimensions: 40x125.2x113.5 mm
- Brand: MEAN WELL
- General
- ModelNDR-240-24
- DC Voltage24V
- Rated Current10A
- Current Range0 ~ 10A
- Rated Power240W
- Voltage Adjustment Range24 ~ 28V
- Ripple & Noise (max.)150mVp-p
- Voltage Tolerance±1.0%
- Line Regulation±0.5%
- Load Regulation±1.0%
- Setup, Rise Time1500ms, 100ms/230VAC; 3000ms, 100ms/115VAC at full load
- Hold Up Time (Typ.)28ms/230VAC; 22ms/115VAC at full load
- Voltage Range90 ~ 264VAC; 127 ~ 370VDC
- Frequency Range47 ~ 63Hz
- Efficiency (Typ.)88.5%
- AC Current (Typ.)2.5A/115VAC; 1.3A/230VAC
- Inrush Current (Typ.)20A/115VAC; 35A/230VAC
- Leakage Current<1mA / 240VAC
- Overload Protection105 ~ 130% rated output power (constant current limiting, recovers automatically after fault removal)
- Over Voltage Protection29 ~ 33V (shut down output voltage, re-power on to recover)
- Over Temperature ProtectionShut down output voltage, recovers automatically after temperature decreases
- Withstand VoltageI/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC
- Isolation ResistanceI/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25°C / 70% RH
- Working Temperature-20 ~ +70°C (Refer to "Derating Curve")
- Working Humidity20 ~ 95% RH non-condensing
- Storage Temperature, Humidity-40 ~ +85°C, 10 ~ 95% RH non-condensing
- Temp. Coefficient±0.03%/°C (0 ~ 50°C)
- Vibration10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Compliance to IEC60068-2-6
- MTBF1645.2K hrs min. (Telcordia SR-332); 230.2K hrs min. (MIL-HDBK-217F at 25°C)
- Dimensions63mm (W) x 125.2mm (H) x 113.5mm (D)
- Weight1Kg; 12pcs/13Kg/1.22CUFT
- CertificationsIEC62368-1, UL508, BS EN/EN62368-1, BSMI CNS14336-1, BIS IS13252(Part1):2010/IEC 60950-1, EAC TP TC 004
- EMC EmissionBS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020, CNS13438, KSC 9832 (for 48V only)
- EMC ImmunityEN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2 (EN50082-2), Heavy Industry Level, EAC TP TC 020, KSC 9835
- Operating AltitudeUp to 2000 meters
- LED IndicatorDC OK
- Cooling MethodFree air convection
- Power Factor (Typ.)PF >0.98/115VAC, PF >0.95/230VAC at full load
- MountingType DIN Rail TS35/7.5 or TS35/15
Supplier parameters
Product code
MB1024VDINMEANWELL
Category
Power Supply Un
Supplier's product code
MB1024VDINMEANWELL
Product ID
U-4510702
Brand
Mean Well
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
