Product description

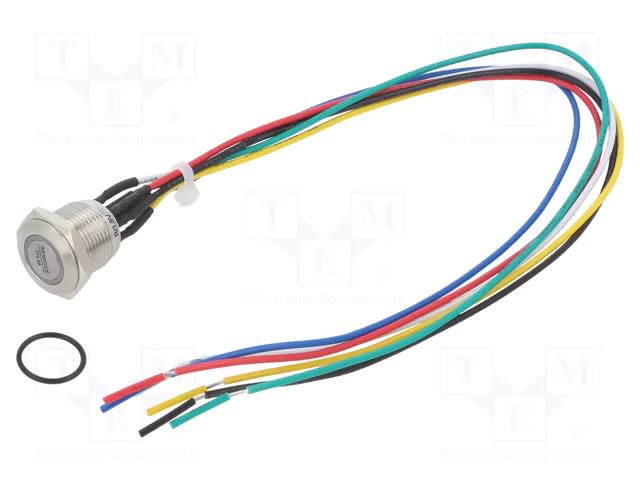

Switch: vandal resistant; Pos: 2; SPST-NO; 2A/48VDC; IP65; OFF-(ON) E-SWITCH
Useful information
Specifications
Supplier product description
Switch: vandal resistant; Pos: 2; SPST-NO; 2A/48VDC; IP65; OFF-(ON)
Useful information
Supplier parameters
Product code
PV6FW40SS3R1
Product ID
U-2735247
Actuator colour
silver
Backlight colour
red/green/blue
Body colour
silver
Body dimensions
Ø18x18mm
Button height
1.5mm
Button marking
blank
Button shape
flat
Contact plating
silver plated
Contacts configuration
SPST-NO
DC contacts rating @R
2A / 48V DC
Electrical life
50000 cycles
Illumination
LED
IP rating
IP65
Key stroke
1.8mm
Lead length
0.3m
Leads
cables
Manufacturer
E-SWITCH
Manufacturer series
PV6
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Min. insulation resistance
1GΩ
Mounting
on panel
Mounting hole diameter
Ø16mm
Number of positions
2
Operating temperature
-20...55°C
Panel thickness
max. 10mm
Stable positions number
1
Switching method
OFF-(ON)
Type of switch
vandal resistant
Brand
E-SWITCH
Supplier's product code
PV6FW40SS3R1
