2,39
Product description

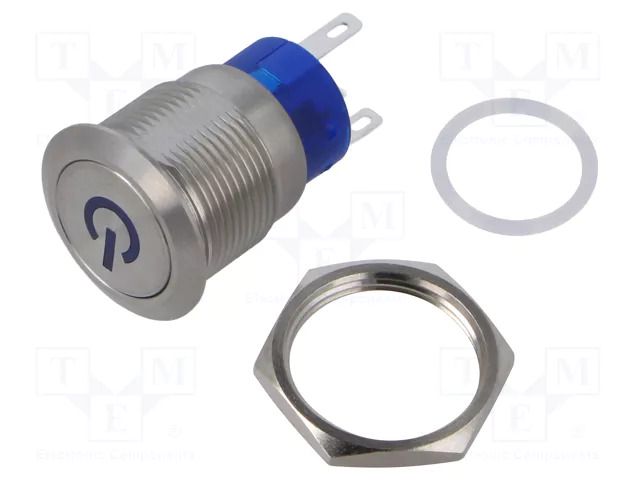

Switch: vandal resistant; Pos: 2; SPDT; 3A/250VAC; IP67; ON-(ON) E-SWITCH
Useful information
Specifications
Supplier product description
Switch: vandal resistant; Pos: 2; SPDT; 3A/250VAC; IP67; ON-(ON)
Useful information
Supplier parameters
Product code
ULV4F2BSS544
AC contacts rating @R
3A / 250V AC
Actuator colour
silver
Backlight colour
blue
Body colour
silver
Body dimensions
Ø22x25.5mm
Button height
2mm
Button marking
POWER
Button shape
flat
Contact plating
silver plated
Contacts configuration
SPDT
Electrical life
50000 cycles
Illumination
LED
IP rating
IP67
Key stroke
3.2mm
Leads
connectors
Leads dimensions
2.8x0.5mm
Manufacturer
E-SWITCH
Manufacturer series
ULV4
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Min. insulation resistance
1GΩ
Mounting
on panel
Mounting hole diameter
Ø19mm
Number of positions
2
Operating Force
2.5N
Operating temperature
-20...55°C
Panel thickness
1...10mm
Stable positions number
1
Switching method
ON-(ON)
Type of switch
vandal resistant
Brand
E-SWITCH
Supplier's product code
ULV4F2BSS544
Product ID
U-2741022
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
