Product description

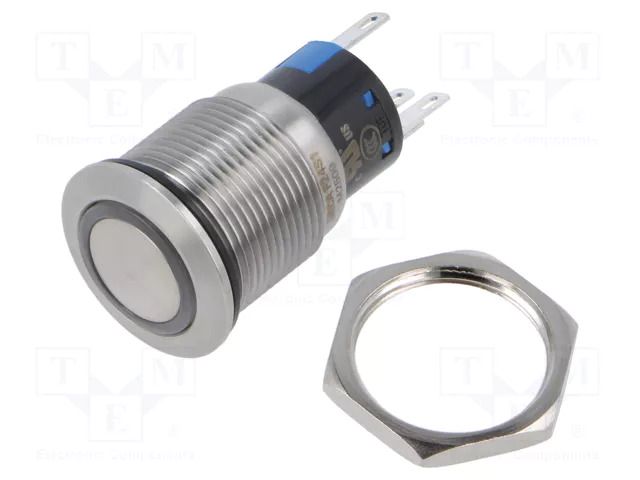

Switch: vandal resistant; Pos: 2; SPDT; 2A/250VAC; 1A/30VDC; IP67 DECA SwitchLab Inc.
Useful information
Specifications
SKU
U-4512683
Product code
F24S1-1233GDS002
Supplier product description
Switch: vandal resistant; Pos: 2; SPDT; 2A/250VAC; 1A/30VDC; IP67
Useful information
Supplier parameters
Product code
F24S1-1233GDS002
Supplier's product code
F24S1-1233GDS002
Product ID
U-4512683
AC contacts rating @R
2A / 250V AC
Backlight colour
green
Body material
stainless steel
Button shape
convex
Contacts configuration
SPDT
DC contacts rating @R
1A / 30V DC
Dimensions
Ø21.5x36.9mm
Electrical life
50000 cycles
Illumination
LED
Illumination voltage
12V
IP rating
IP67
Leads
for soldering
Manufacturer
DECA SwitchLab Inc.
Max. contact resistance
:50mΩ
Mechanical durability
100000 cycles
Min. insulation resistance
0.1GΩ
Mounting hole diameter
Ø19mm
Number of positions
2
Operating temperature
-25...50°C
Panel thickness
0.5...6mm
Stable positions number
1
Switching method
ON-(ON)
Type of switch
vandal resistant
