Product description

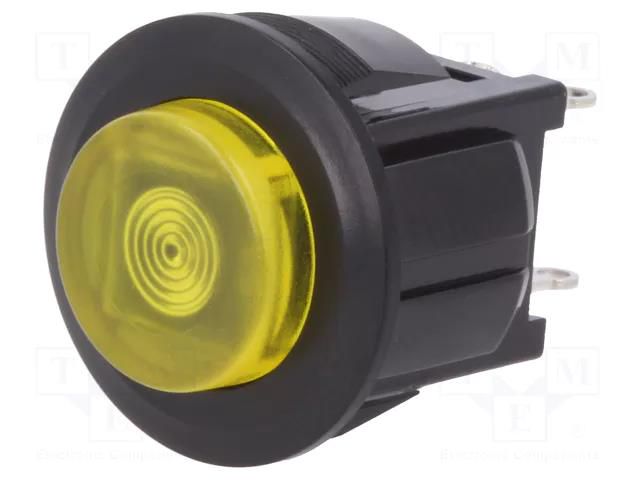

Switch: push-button; Pos: 2; SPST-NO; 1A/125VAC; OFF-ON; yellow MIYAMA
Useful information
Specifications
Supplier product description
Switch: push-button; Pos: 2; SPST-NO; 1A/125VAC; OFF-ON; yellow
Useful information
Supplier parameters
Supplier's product code
DS-664K-C-L-S-K-TY
Product ID
U-170095
AC contacts rating @R
1A / 125V AC
AC test voltage
1kV
Actuator colour
yellow
Backlight colour
yellow
Body colour
black
Button shape
prominent
Contacts configuration
SPST-NO
Illumination
LED
Leads
for soldering
Manufacturer
MIYAMA
Manufacturer series
DS-664
Max. contact resistance
:20mΩ
Min. insulation resistance
0.1GΩ
Mounting
on panel
Mounting hole diameter
Ø16.9mm
Number of positions
2
Operating temperature
-10...55°C
Panel thickness
1...2.5mm
Stable positions number
2
Switching method
OFF-ON
Type of switch
push-button
Brand
MIYAMA
Product code
DS-664K-C-L-S-K-TY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
