Product description

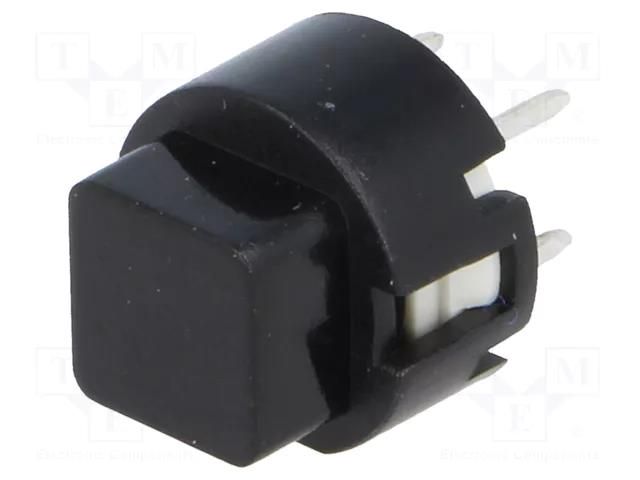

Switch: keypad; Pos: 2; SPST-NO; 0.01A/35VDC; black; none; THT; Ø12mm HIGHLY ELECTRIC
Useful information
Specifications
SKU
U-231310
Product code
KS01-AV-BLACK
Supplier product description
Switch: keypad; Pos: 2; SPST-NO; 0.01A/35VDC; black; none; THT; Ø12mm
Useful information
Supplier parameters
Product code
KS01-AV-BLACK
Supplier's product code
KS01-AV-BLACK
Product ID
U-231310
Actuator colour
black
Body dimensions
Ø12mm
Button shape
square
Contacts configuration
SPST-NO
DC contacts rating @R
0.01A / 35V DC
Electrical life
100000 cycles
Illumination
none
Leads
for PCB
Manufacturer
HIGHLY ELECTRIC
Manufacturer series
KS01
Max. contact resistance
:30mΩ
Min. insulation resistance
0.1GΩ
Mounting
THT
Number of positions
2
Operating Force
1.3N
Operating temperature
-20...60°C
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
5x5mm
Type of switch
keypad
