Product description

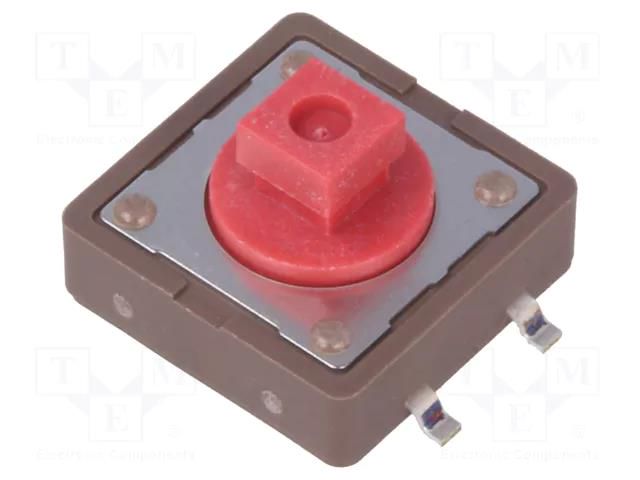

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 2.6N DIPTRONICS
Useful information
Specifications
Supplier product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 2.6N
Useful information
Supplier parameters
Product code
DTSM24R
Brand
DIPTRONICS
Supplier's product code
DTSM24R
Product ID
U-171842
Actuator colour
red
Body dimensions
12x12mm
Button height
7.3mm
Button shape
square
Contacts configuration
SPST-NO
DC contacts rating @R
50mA / 12V DC
Illumination
none
Leads
for PCB
Manufacturer
DIPTRONICS
Max. contact resistance
:100mΩ
Min. insulation resistance
0.1GΩ
Mounting
SMT
Number of positions
2
Operating Force
2.6N
Operating temperature
-25...70°C
Soldering temperature
260°C / 5 s
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
5x12.4mm
Type of switch
microswitch TACT
