Product description

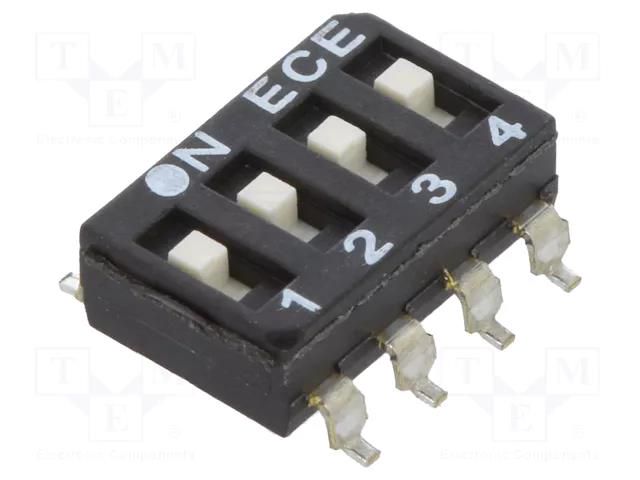

Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.025A/24VDC; Pos: 2/4 ECE
Useful information
Specifications
Supplier product description
Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.025A/24VDC; Pos: 2/4
Useful information
Supplier parameters
Product code
ESD104LTZ
Supplier's product code
ESD104LTZ
Product ID
U-182729
Body dimensions
10.12x6.6x3.1mm
Contacts configuration
SPST
DC contacts rating @R
25mA / 24V DC
Leads
for PCB
Manufacturer
ECE
Manufacturer series
ESD
Max. contact resistance
:50mΩ
Mechanical durability
2000 cycles
Min. insulation resistance
1GΩ
Mounting
SMT
Number of positions
2/4
Operating temperature
-40...85°C
Poles number
4
Row pitch
7.9mm
Stable positions number
2
Switches features
flat actuator
Switching method
OFF-ON
Terminal pitch
2.54mm
Type of switch
DIP-SWITCH
Brand
ECE
