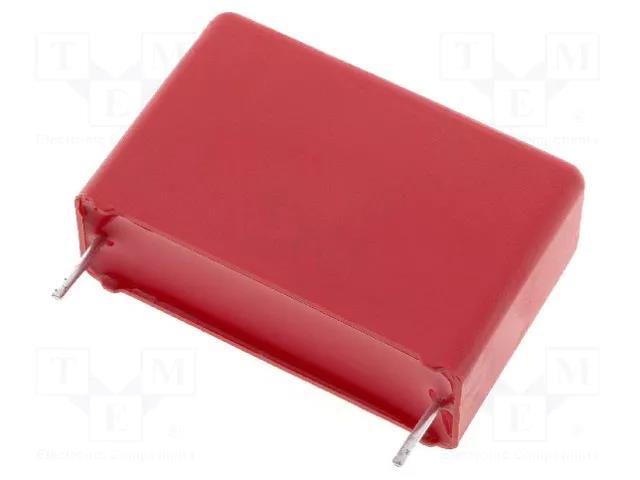

Capacitor: polypropylene; 100nF; 400VDC; 250VAC; 18x7x14mm; THT WIMA
Product Code: MKP10-100N/400/10
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-08-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Capacitor: polypropylene; 100nF; 400VDC; 250VAC; 18x7x14mm; THT WIMA
Useful information
Specifications
Supplier product description
Capacitor: polypropylene; 100nF; 400VDC; 250VAC; 18x7x14mm; THT
Useful information
Supplier parameters
Product code
MKP10-100N/400/10
Brand
WIMA
Supplier's product code
MKP10-100N/400/10
Product ID
U-259943
Body dimensions
18x7x14mm
Capacitance
0.1µF
Capacitor application
impulse circuits
Capacitors features
low dielectric loss factor
Climate class
55/100/56
Flammability rating
UL94V-0
Kind of material
flame retardant
Kind of package
cardboard packaging
Lead length
6mm
Manufacturer
WIMA
Max. operating voltage
250V AC
Mounting
THT
Operating temperature
-55...110°C
Pulse resistance
650V/μs
Terminal pitch
15mm
Type of capacitor
polypropylene
Tolerance
±10%
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
