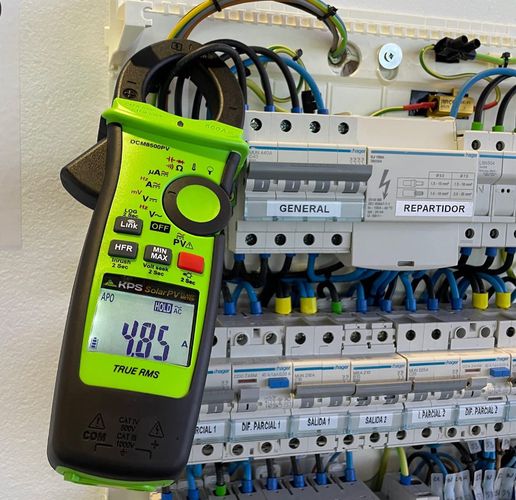

AC Clamp Meter, PV, D37mm, TRMS, NCV, 600A AC/DC, 400µA/4000µA AC/DC, 1500/2000V AC/DC, 600mV DC, 10kHz, 600kOm, 1000uF, -40-400C, 6000 LCD, BT, KPS
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 7 pcs | Central Warehouse (new location) |
Delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 7 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
2,39
Product description
Features:
- Industrial, HVAC & Solar PV Application
- 2000VDC measurement for Photovoltaic output, supplied with designated PV test Leads
- 6,000 count with large white LED backlight display
- DC 600mV measurement for sensors or other application
- DC uA for flame rod testing
- Inrush Current measurement (100ms)
Technical data:
|
Function |
Range |
OL Reading |
Resolution |
Accuracy |
|
DC mV |
600.0mV |
660.0mV |
0.1mV |
±(0.7% + 5D) |
|
DC Voltage |
600.0V |
660.0V |
0.1V |
±(0.7% + 2D) |
|
1000V |
1100V |
1V |
||
|
AC Voltage |
600.0V |
660.0V |
0.1V |
±(1.0% + 5D) |
|
1000V |
1100V |
1V |
||
|
PV DC Voltage |
600.0V |
660.0V |
0.1V |
±(2.0% + 5D) |
|
2000V |
2200V |
1V |
||
|
PV AC Voltage |
600.0V |
660.0V |
0.1V |
±(2.0% + 5D) |
|
1500V |
1600V |
1V |
||
|
AC/DC μA |
400.0μA |
440.0μA |
0.1μA |
±(1.0% + 3D) |
|
4000μA |
4400μA |
1μA |
||
|
DC Current |
60.00A |
66.00A |
0.01A |
±(2.0% + 5D) |
|
600.0A |
660.0A |
0.1A |
||
|
AC Current |
60.00A |
66.00A |
0.01A |
±(2.0% + 5D) |
|
600.0A |
660.0A |
0.1A |
||
|
Frequency |
100.00Hz |
100.00Hz |
0.01Hz |
±(0.3% + 3D) |
|
1000.0Hz |
1000.0Hz |
0.1Hz |
||
|
10.000kHz |
10.000kHz |
0.001kHz |
||
|
Resistance |
600.0Ω |
660.0Ω |
0.1Ω |
±(0.9% + 5D) |
|
6.000kΩ |
6.600kΩ |
0.001kΩ |
±(0.9% + 2D) |
|
|
60.00kΩ |
66.00kΩ |
0.001kΩ |
||
|
600.0kΩ |
660.0kΩ |
0.1kΩ |
||
|
Diode |
1.500V |
1.550V |
0.001V |
±(0.9% + 2D) |
|
Capacitance |
100.0μF |
110.0μF |
0.1μF |
±(1.9% + 2D) |
|
1000μF |
1100μF |
1μF |
||
|
Temperature |
-40.0°C~400.0°C |
440.0°C |
0.1°C |
±(1% + 20D) |
|
-40.0°F~752.0°F |
824.0°F |
0.1°F |
±(1% + 36D) |
Useful information
Specifications
Experimental product description generated by artificial intelligence
Solar Clamp Meter, KPS
The KPS Solar Clamp Meter is a professional-grade instrument designed for quick and easy current measurements in various applications, including solar power systems, HVAC, and industrial settings. This versatile tool allows for accurate measurements without disconnecting the circuit, ensuring efficiency and safety.
Key Features and Functions
- True RMS measurements: Provides accurate readings even with non-sinusoidal waveforms.
- Wide current range: Capable of measuring a broad spectrum of currents.
- Non-contact voltage detection: Enhances safety by allowing for voltage verification without direct contact.
- Data logging: Stores measurement data for later analysis and review.
- Bluetooth connectivity: Enables seamless data transfer to mobile devices and computers.
- Additional functions: Offers a comprehensive suite of measurement capabilities, including resistance, capacitance, frequency, and temperature.
Uses
The KPS Solar Clamp Meter is ideal for:
- Solar power system installations and maintenance
- HVAC system troubleshooting and diagnostics
- Industrial electrical work and safety checks
Why Choose This Product?
The KPS Solar Clamp Meter combines precision, versatility, and user-friendliness in a single, robust package. Its advanced features and intuitive design make it an indispensable tool for professionals in various fields. The inclusion of Bluetooth connectivity and data logging capabilities further enhances its efficiency and value.
| Feature | Benefit |
|---|---|
| True RMS Measurement | Accurate readings, even with non-sinusoidal waveforms. |
| Bluetooth Connectivity | Easy data transfer and analysis. |
| Data Logging | Efficient record-keeping and trend analysis. |
| Multiple Measurement Functions | Versatility for various applications. |
