Product description

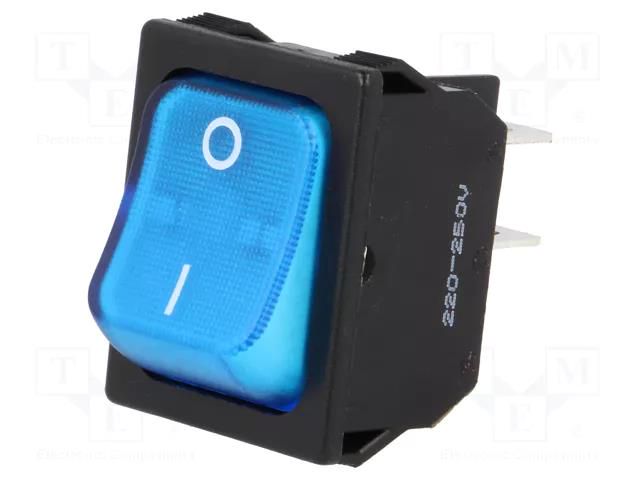

ROCKER; DPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50mΩ SCI
Useful information
Specifications
Supplier product description
ROCKER; DPST; Pos: 2; ON-OFF; 10A/250VAC; blue; neon lamp; 250V; 50mΩ
Useful information
Supplier parameters
Product code
RS13117BBBL2N2
AC contacts rating @R
10A / 250V AC
Backlight colour
blue
Body colour
black
Body material
polyamide
Button marking
O-I
Contacts configuration
DPST
Electrical life
6000 cycles
Flammability rating
UL94V-2
Illumination
neon lamp
Illumination voltage
250V
Key button colour
blue
Leads
connectors
Leads dimensions
6.3x0.8mm
Manufacturer
SCI
Manufacturer series
R13-177-AC
Max. contact resistance
:50mΩ
Mounting hole diameter
30.4x22.2mm
Number of positions
2
Operating temperature
-20...85°C
Panel thickness
max. 3mm
Shape
rectangular
Stable positions number
2
Switching method
ON-OFF
Type of switch
ROCKER
Supplier's product code
RS13117BBBL2N2
Product ID
U-313489
Brand
SCI
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
