Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC RELPOL
Product Code: RM85V7-Z-24VDC

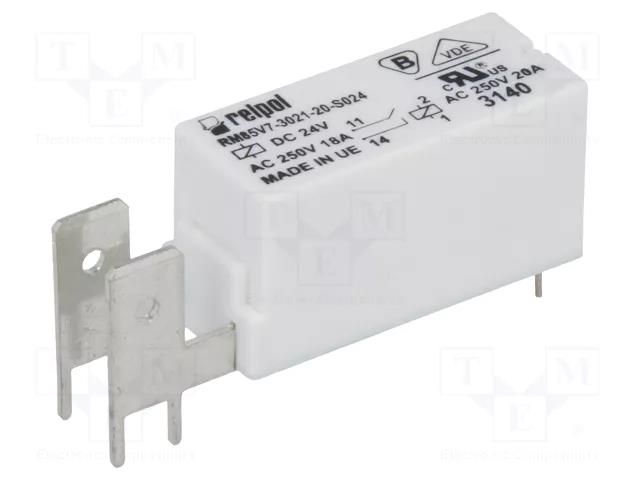

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-16 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 39 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/250VAC
Useful information
Supplier parameters
Product code
RM85V7-Z-24VDC
AC contacts rating @R
20A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
250mW
Coil resistance
2.3kΩ
Coil voltage max.
72V DC
Coil voltage min.
18V DC
Contact current max.
20A
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
20A / 24V DC
IP rating
IP40
Leads
for PCB
Leads dimensions
6.3x0.8mm
Manufacturer
RELPOL
Manufacturer series
RM85V7
Mounting
PCB
OEM number
855380
Operate time
8ms
Operating temperature
-40...105°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
3ms
Switched voltage
max. 250V DC
Terminal pitch
7.5mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM85V7-Z-24VDC
Product ID
U-312142
