Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC RELPOL
Product Code: RM96-3011-35-1009

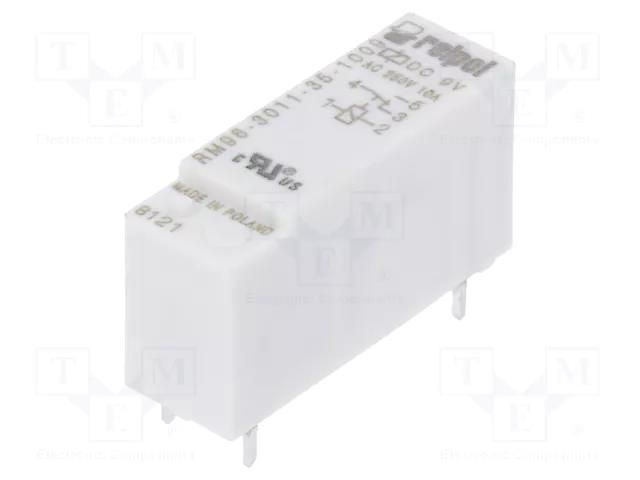

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-14 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC
Useful information
Supplier parameters
Product code
RM96-3011-35-1009
Product ID
U-312154
AC contacts rating @R
8A / 250V AC
Body dimensions
30x10x16.2mm
Coil power consumption
300mW
Coil resistance
360Ω
Coil voltage max.
22V DC
Coil voltage min.
6.3V DC
Contact current max.
8A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
8A / 24V DC
Height
16.2mm
IP rating
IP67
Manufacturer
RELPOL
Manufacturer series
RM96-1P
Mechanical durability
20000000 cycles
Mounting
PCB
Number of pins
5
OEM number
852842
Operate time
10ms
Operating temperature
-40...80°C
Rated coil voltage
9V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 120V DC
Terminal pitch
3.2mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM96-3011-35-1009
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
