Relay: electromagnetic; SPDT; Ucoil: 5VDC; 2A; 2A/120VAC; 2A/24VDC RELPOL
Product Code: RSM957-P-05

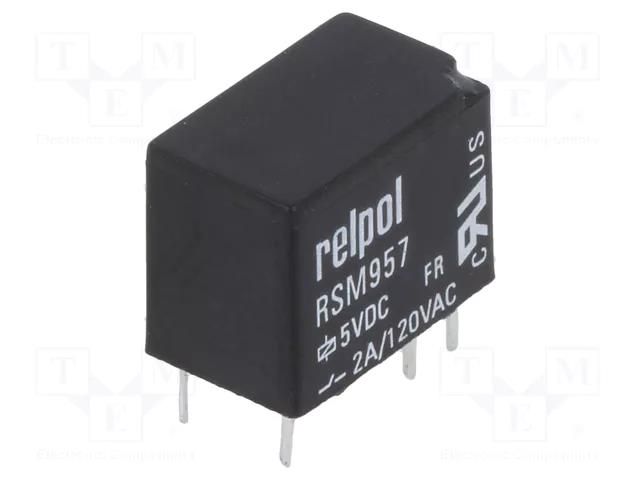

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2677 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 2A; 2A/120VAC; 2A/24VDC RELPOL
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 2A; 2A/120VAC; 2A/24VDC
Supplier parameters
Product code
RSM957-P-05
Brand
RELPOL
Supplier's product code
RSM957-P-05
Product ID
U-314069
AC contacts rating @R
2A / 120V AC
Body dimensions
12.6x10x7.8mm
Coil power consumption
150mW
Coil resistance
167Ω
Coil voltage max.
6.5V DC
Coil voltage min.
4V DC
Contact current max.
2A
Contact material
Ag/Au 0,2μm
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
2A / 24V DC
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RSM957
Mounting
PCB
OEM number
2611736
Operate time
5ms
Operating temperature
-30...70°C
Rated coil voltage
5V DC
Relay variant
subminiature
Release time
5ms
Switched voltage
max. 24V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
