Product description

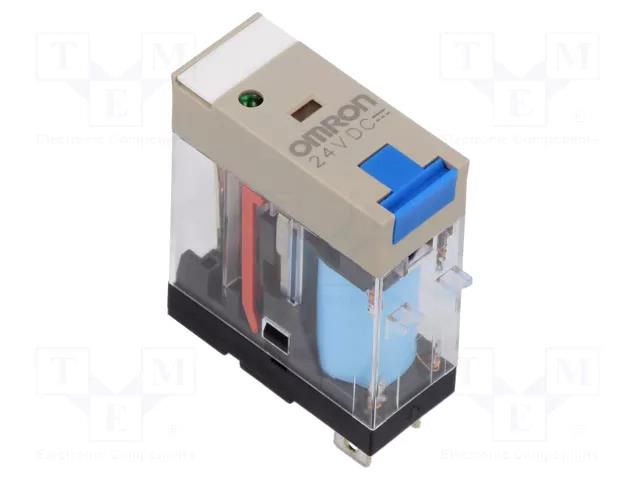

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A OMRON
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Useful information
Supplier parameters
AC contacts rating @R
10A / 250V AC
Body dimensions
29x13x35.5mm
Coil current
21.8mA
Coil power consumption
530mW
Coil resistance
1.1kΩ
Contact current max.
10A
Contact resistance
30mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 30V DC
Design
test button
Indication
LED
Manufacturer
OMRON
Manufacturer series
G2R-1-S
Mounting
socket
Operate time
15ms
Operating temperature
-40...70°C
Optional equipment
test button without blocking function
Rated coil voltage
24V DC
Relay variant
miniature
Related items
P2RF-05-E
Release time
5ms
Switched voltage
max. 125V DC
Switching capacity
300W
Terminal pitch
5.2mm
Type of relay
electromagnetic
Product code
G2R-1-SNI-24DC
Brand
OMRON
Supplier's product code
G2R-1-SNI-24DC
Product ID
U-193589
