Product description

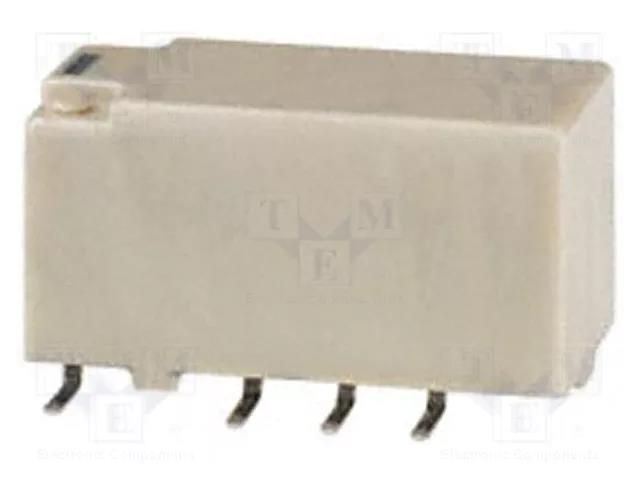

Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; TX PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; TX
Useful information
Supplier parameters
Product code
TX2SA-12V
Supplier's product code
TX2SA-12V
Product ID
U-365540
Body dimensions
15x7.4x8.2mm
Coil current
11.7mA
Coil power consumption
140mW
Coil resistance
1028Ω
Coil voltage min.
9V DC
Contact current max.
2A
Contact material
silver alloy
Contact plating
gold-plated
Contacts configuration
DPDT
DC contacts rating @R
2A / 30V DC
Manufacturer
PANASONIC
Manufacturer series
TX
Mechanical durability
100000000 cycles
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
subminiature
Switched voltage
max. 220V DC
Type of relay
electromagnetic
Brand
PANASONIC
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
