Product description

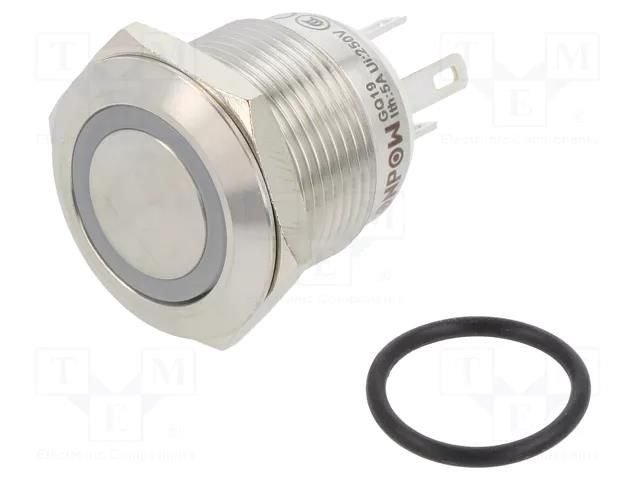

Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC ONPOW
Useful information
Specifications
Supplier product description
Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC
Useful information
Supplier parameters
Product code
GQ19F-10EJR12VS
Product ID
U-1921623
AC contacts rating @R
0.5A / 220V AC
Actuator colour
silver
Backlight colour
red
Body colour
silver
Body material
stainless steel
Button shape
flat
Contact material
silver alloy
Contacts configuration
SPST-NO
DC contacts rating @R
2A / 36V DC
Electrical life
200000 cycles
Illumination
LED
Illumination voltage
12V
IP rating
IP65
Leads
connectors
Leads dimensions
2.8x0.5mm
Manufacturer
ONPOW
Manufacturer series
GQ19
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Min. insulation resistance
1GΩ
Mounting hole diameter
Ø19mm
Number of positions
2
Operating Force
4N
Operating temperature
-25...55°C
Related items
M12-19F
Ring shape
rounded
Stable positions number
1
Switching method
OFF-(ON)
Test voltage
1.5kV
Type of switch
vandal resistant
Brand
ONPOW
Supplier's product code
GQ19F-10EJR12VS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
