Product description

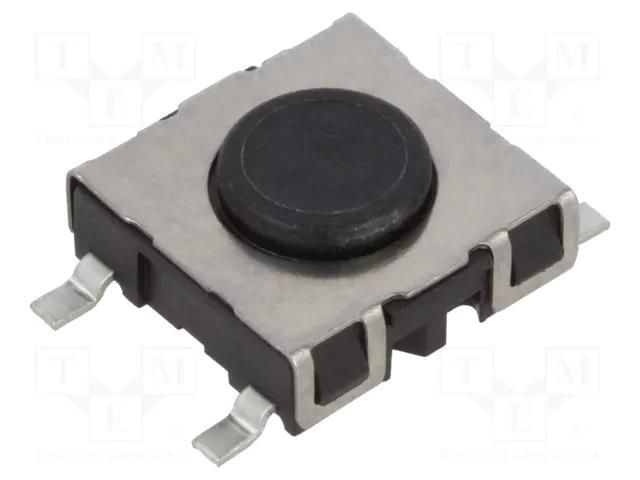

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/42VDC; SMD; 1.8N; 4.7mm SCHURTER
Useful information
Specifications
Supplier product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/42VDC; SMD; 1.8N; 4.7mm
Useful information
Supplier parameters
Product code
1241.1600.11
Brand
SCHURTER
Supplier's product code
1241.1600.11
Product ID
U-2392194
AC contacts rating @R
0.05A / 30V AC
Body dimensions
11.4x11.4x3.65mm
Body material
polyamide
Button height
4.7mm
Button material
aluminium alloy
Button shape
round
Contact plating
gold-plated
Contacts configuration
SPST-NO
DC contacts rating @R
0.05A / 42V DC
Electrical life
1000000 cycles
IP rating
IP40
Key stroke
0.35mm
Leads
for PCB
Manufacturer
SCHURTER
Manufacturer series
SMS
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Mounting
SMD
Number of positions
2
Operating Force
1.8N
Operating temperature
-40...85°C
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
14x7.5mm
Type of switch
microswitch TACT
