Product description

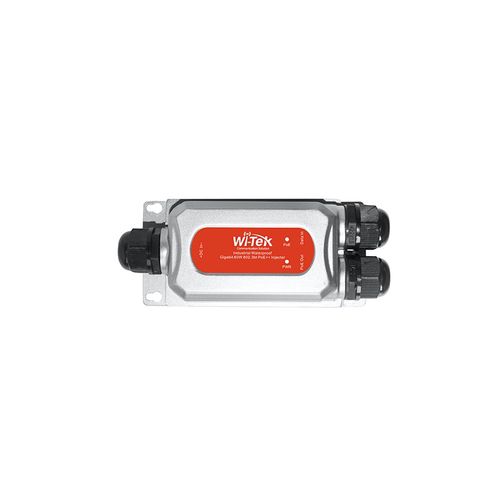

PoE Repeater Wi-tek WI-POE56-60W-I-O
Specifications
SKU
U-4589782
Product code
TVUWIPOE5660WIO
Supplier product description
- Type: PoE repeater
- Model: WI-POE56-60W-I-O
- Brand: Wi-Tek
- Input: 1x 1000 Mbps
- Output: 1x 1000 Mbps PoE (60 W)
- Power: 1x power port
- MDI/MDI-X: Auto
- Protection rating: IP68
- Operating temperature: –40°C to +80°C
- General
- ModelWI-POE56-60W-I-O
- Hardware VersionV1
- Interfaces1 x 100/1000Mbps Ethernet Port (Data IN), 1 x 100/1000Mbps Hi-PoE Output Port
- PoE StandardIEEE 802.3af/at/bt (60W)
- PoE Power Budget60W Max
- PoE Power Supply TypeMid-span and End-span
- PoE Pin Assignment1/2(+), 3/6(-) or 4/5(+), 7/8(-)
- Input PowerDC 24–56V, 3A Max
- Power ConsumptionIdle: 3W
- LED IndicatorsPower: On=Normal, Off=Power off/failure; PoE: Green=802.3bt PoE active, Orange=UPoE mode active
- Fan QuantityFanless
- Dimensions150 × 72 × 46 mm
- Package Dimensions242 × 182 × 84 mm
- WeightNet: 0.47kg, Package: 0.86kg
- InstallationWall-mounted, Desktop
- Surge ImmunityIEC 61000-4-5: Common mode 6kV, Differential mode 2kV
- ESD ProtectionIEC 61000-4-2: Contact discharge 8kV, Air discharge 10kV
- Operating Temperature-40℃ to 75℃ (-40℉ to 167℉)
- Operating Humidity5%–90% RH, non-condensing
- Storage Temperature-40℃ to 85℃ (-40℉ to 185℉)
- Storage Humidity5%–95% RH, non-condensing
- CertificationCE, FCC, RoHS, UKCA, RCM
- Special FeaturesIndustrial Waterproof Design, Plug and Play, No Configuration Required, Overload and Short Circuit Protection
- Package ContentsPoE Injector x1, M22 Waterproof Gland x3, Wrench x1, Ground Wire x1, Quick Installation Guide x1
Supplier parameters
Product code
TVUWIPOE5660WIO
Category
PoE
Supplier's product code
TVUWIPOE5660WIO
Product ID
U-4589782
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
