Product description

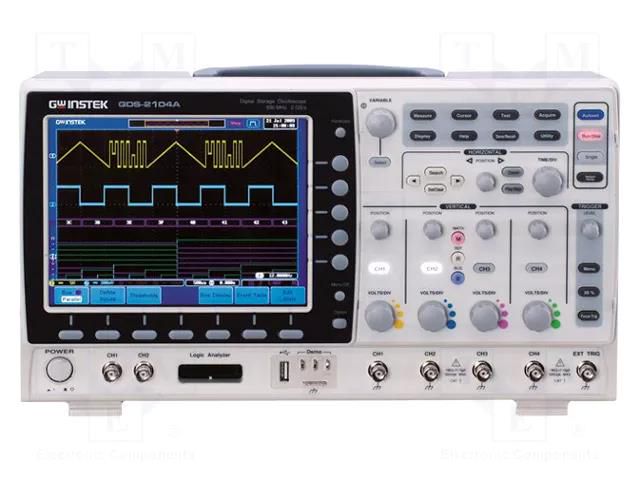

Oscilloscope: digital; DSO; Ch: 4; 70MHz; 2Mpts; LCD 8"; 1n÷100s/div GW INSTEK
Useful information
Specifications
Supplier product description
Oscilloscope: digital; DSO; Ch: 4; 70MHz; 2Mpts; LCD 8"; 1n÷100s/div
Useful information
Supplier parameters
Brand
GW INSTEK
Supplier's product code
GDS-2074A
Product ID
U-195478
Band
70MHz
Connectors for the country
Europe
Dimensions
380x220x145mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Input sensitivity
1mV/div...10V/div
Interface
RS232
Kind of display used
LCD 8"
Kind of oscilloscope
DSO
Kind of output connector
USB A socket
Manufacturer
GW INSTEK
Max. input voltage
300V
Measurement memory
24
Measuring instrument features
20 sets memory
Memory record length
2Mpts
Number of channels
4
Related items
DS2-8LA
Rise time
≤5ns
Sampling
2Gsps (in real time)
Software
included
Standard equipment
mains cable
Supply voltage
100...240V AC
Time base
1n...100s/div
Type of oscilloscope
digital
Trigger
rising-edge
Trigger coupling
AC
Trigger modes
automatic
Vertical resolution
8bit
Product code
GDS-2074A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
