Product description

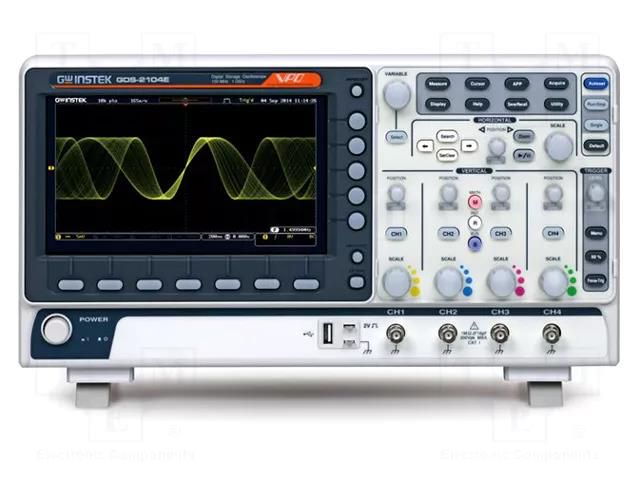

Oscilloscope: digital; DSO; Ch: 4; 100MHz; 1Gsps; 10Mpts; LCD TFT 8" GW INSTEK
Useful information
Specifications
Supplier product description
Oscilloscope: digital; DSO; Ch: 4; 100MHz; 1Gsps; 10Mpts; LCD TFT 8"
Useful information
Supplier parameters
Brand
GW INSTEK
Supplier's product code
GDS-2104E
Product ID
U-195485
Band
100MHz
Connectors for the country
Europe
Dimensions
384x208x127.3mm
Display resolution
800x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Input sensitivity
1mV/div...10V/div
Interface
USB
Kind of display used
LCD TFT 8"
Kind of oscilloscope
DSO
Manufacturer
GW INSTEK
Manufacturer series
GDS-2000E
Max. input voltage
300V
Measuring instrument features
background noise filter
Memory record length
10Mpts
Number of channels
4
Rise time
≤3.5ns
Sampling
1Gsps
Standard equipment
mains cable
Time base
1n...100s/div
Type of oscilloscope
digital
Trigger coupling
AC
Trigger modes
automatic
Vertical resolution
8bit
Product code
GDS-2104E
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
