Product description

UNI-T

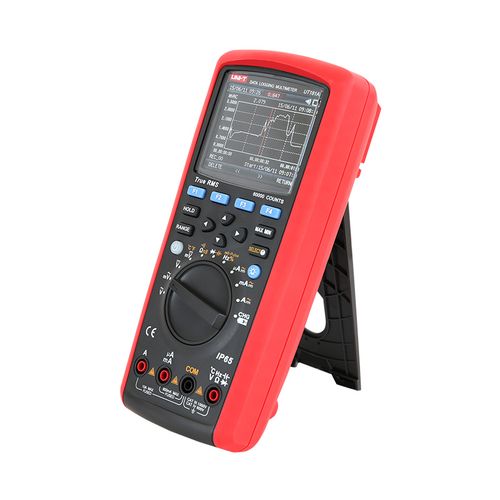

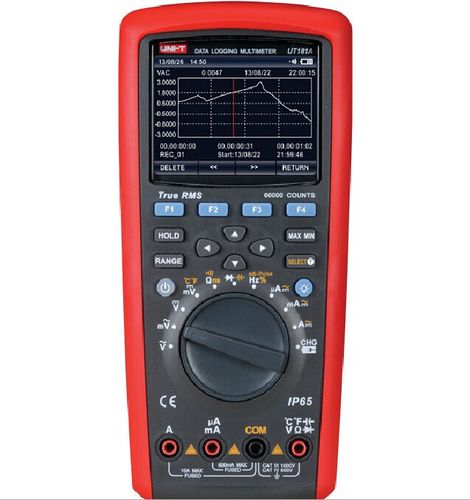

UT181A True RMS Datalogging Multimeter

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

Features of UT181A True RMS Datalogging Multimeter

Certifications: CE, UKCA, cETLus

● Trend capture

● Data logging: 20000
● Data comparison
● 3.5-inch 64k color TFT LCD
● Dual temperature measurement
● Low pass filter
● 2000mAh Li-ion battery
● Real time and date
● Peak hold
● Bluetooth/APP
● USB interface cable /PC software CD
● IP65


Specifications of UT181A True RMS Datalogging Multimeter

Specifications

Range

UT181A

DC voltage (V)

1000V

±(0.025%+5)

AC voltage (V)

1000V

±(0.3%+30)

DC current (A)

10A

±(0.08%+10)

AC current (A)

10A

±(0.6%+20)

Resistance (Ω)

60MΩ

±(0.05%+2)

Admittance (nS)

60nS

±(2%+10)

Capacitance (F)

60mF

±(2%+5)

Frequency (Hz)

10Hz~60MHz

±(0.01%+5)

Temperature (°C)

 -40°C~1000°C

±(1%+30)

Temperature (°F)

 -40°F~1832°F

±(1.5%+50)

Features

Display count



60000

Auto/Manual range



Bandwidth (Hz)

100kHz

AC+DC/Continuity buzzer



Low pass filter

1kHz

dBV/dBm



Diode

Around 3V

Duty cycle

10%~90%

Dual temperature measurement

T1, T2, T1-T2, T2-T1

Data hold/Peak hold



Relative mode



Data logging

20000

Trend capture



MAX/MIN/AVG



Data time display/Data comparison



Backlight adjustment



Analog bar graph/USB interface



Mis-plug alarm



Battery indication/Auto power off



Rechargeable battery



Input protection



Input impedance for DCV

≥10MΩ

General Characteristics

Power

Li-ion battery: 7.4V 2000mAh

Display

3.5-inch 64K color TFT LCD (320 x 240)

Product color

Red and grey

Product net weight

638.6g

Product size

225mm x 103mm x 59mm

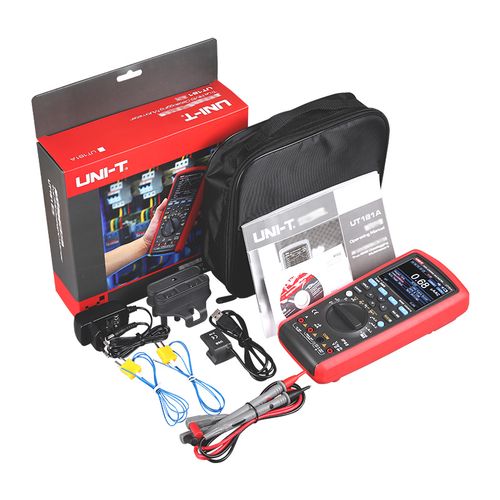

Standard accessories

Battery, test leads, temperature adaptor socket,
point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable

Standard individual packing

Gift box, carrying bag, English manual

Standard quantity per carton

20pcs

Standard carton measurement

480mm x 385 mm x 505mm

Standard carton gross weight

25.3kg

Optional accessory

Bluetooth adaptor (UT-D07)





Useful information


Specifications

SKU
204886
Weight
1.211 kg.
Barcodes
5901890013338; 6935750518113
Warranty period (months)
12
Measuring voltage AC, V
1000
Measured current AC, A
10
The voltage DC is measured, V
1000
Measured current DC, A
10
Brand
Product code
UT181A
