Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; THT TE Connectivity
Product Code: V23079A1001B301

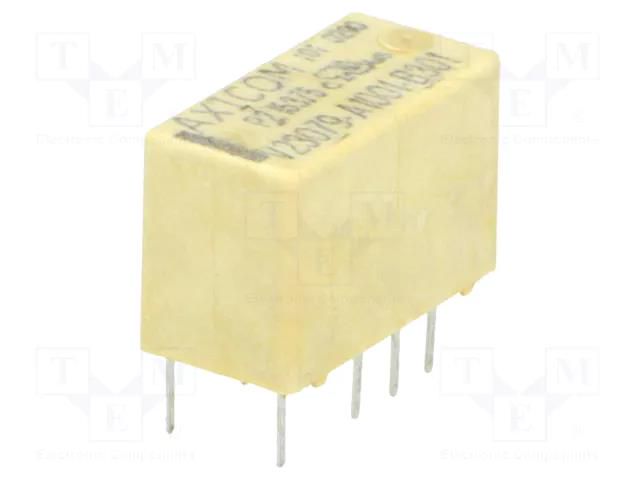

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3524 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; THT TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; THT
Useful information
Supplier parameters
Supplier's product code
V23079A1001B301
Product ID
U-373640
AC contacts rating @R
0.5A / 125V AC
Body dimensions
14.5x7.2x9.8mm
Coil power consumption
140mW
Coil resistance
178Ω
Coil voltage max.
10.9V DC
Coil voltage min.
3.75V DC
Contact current max.
2A
Contacts configuration
DPDT
DC contacts rating @R
2A / 30V DC
Design
single coil
Manufacturer
TE Connectivity
Manufacturer series
P2
Mounting
THT
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
Product code
V23079A1001B301
Brand
TE Connectivity
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
