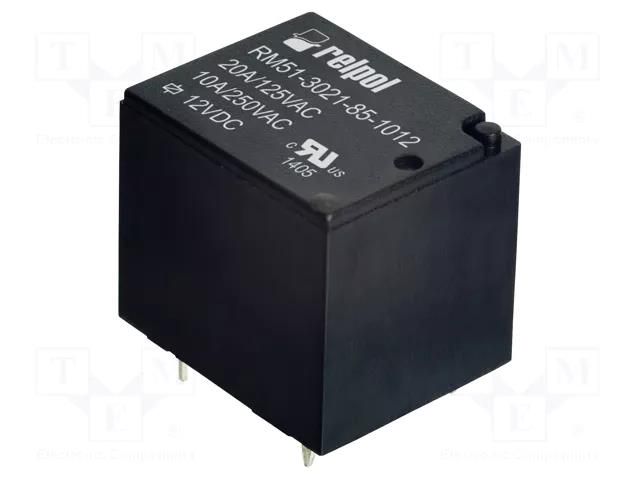

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC RELPOL
Product Code: RM513021851012
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-14 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 122 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Useful information
Supplier parameters
Product code
RM513021851012
AC contacts rating @R
10A / 250V AC
Body dimensions
19.5x16x17.1mm
Coil power consumption
360mW
Coil resistance
400Ω
Coil voltage max.
15.6V DC
Coil voltage min.
9V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 30V DC
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RM51
Mounting
PCB
OEM number
2614707
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM513021851012
Product ID
U-312039
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
