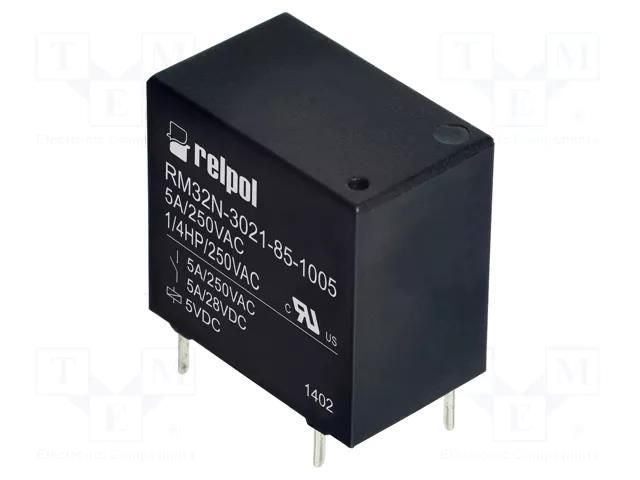

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; RM32N RELPOL
Product Code: RM32N3021851005
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-14 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 825 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; RM32N RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; RM32N
Useful information
Supplier parameters
Product code
RM32N3021851005
AC contacts rating @R
5A / 250V AC
Body dimensions
18.8x10.6x15.3mm
Coil power consumption
200mW
Coil resistance
56Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
5A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 28V DC
Electrical life
100000 cycles
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RM32N
Mechanical durability
100000000 cycles
Mounting
PCB
OEM number
2615019
Operate time
8ms
Operating temperature
-40...70°C
Rated coil voltage
5V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
7.62mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM32N3021851005
Product ID
U-311976
