Product description

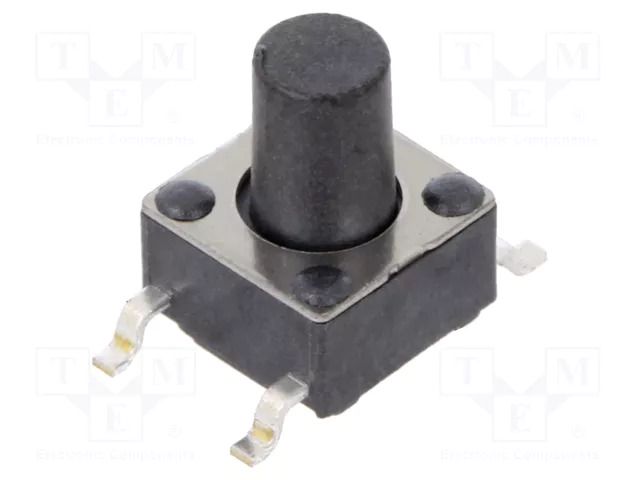

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.57N E-SWITCH
Useful information
Specifications
Supplier product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.57N
Useful information
Supplier parameters
Product code
TL3301CF160QG
Actuator colour
black
Body dimensions
6x6x4mm
Button height
8mm
Button shape
round
Contacts configuration
SPST-NO
DC contacts rating @R
50mA / 12V DC
Electrical life
100000 cycles
Illumination
none
Key stroke
0.25mm
Leads
for PCB
Manufacturer
E-SWITCH
Manufacturer series
TL3301
Max. contact resistance
:100mΩ
Mechanical durability
100000 cycles
Min. insulation resistance
0.1GΩ
Mounting
SMT
Number of positions
2
Operating Force
1.57N
Operating temperature
-40...85°C
Stable positions number
1
Switching method
OFF-(ON)
Type of switch
microswitch TACT
Brand
E-SWITCH
Supplier's product code
TL3301CF160QG
Product ID
U-2382978
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
