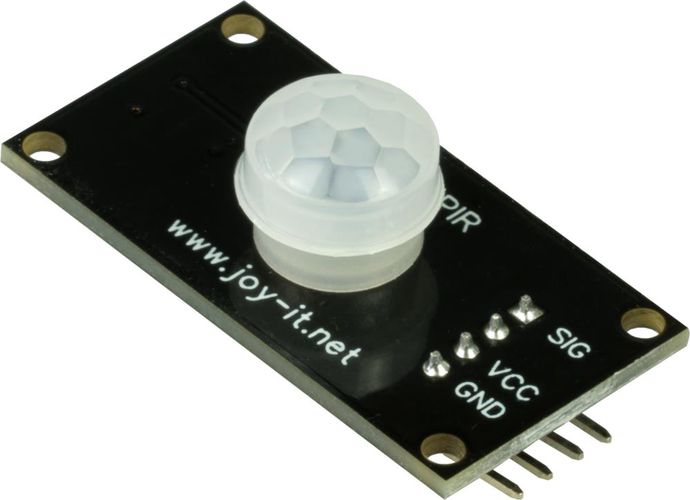

Joy-iT PIR Motion dectector sensor
Product Code: SBC-PIR
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2026-06-12 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Naujiena! LEMONA electronics paštomatai, veikiantys 24/7
Naujiena! LEMONA electronics paštomatai, veikiantys 24/7Free
Orders are processed on weekdays from 8:00 AM to 5:00 PM. Once your order is ready for pickup, we will notify you via text message and email. You will find the parcel terminal next to the store.
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 € |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39 €
Product description
Joy-iT PIR Motion dectector sensor
Useful information
Specifications
Supplier product description
The sensor on this module is a pyroelectric infrared sensor which detects movement in the detection area of the Fresnel lens and then outputs a "HIGH" signal at the sensor output pin "SIG" for 3 seconds.
Afterwards the signal changes back to the "LOW" state.
The soldered potentiometer is used for variable range adjustment.
With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.
Afterwards the signal changes back to the "LOW" state.
The soldered potentiometer is used for variable range adjustment.
With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.
Technical data:
Sensor: PIR Motion Detector
Operating principle: Pyroelectric infrared rays
Special feature: Reach infinitely variable
Supply voltage: between 3-5 Volts
Module interface: 4 Pins
Detector chip: BIS0001
Detection angle: 120°
Detection range: max. 6 meters (3 meters standard)
Variable detection range via potentiometer: Adjusting the sensitivity controller on the module board using a cross screwdriver
