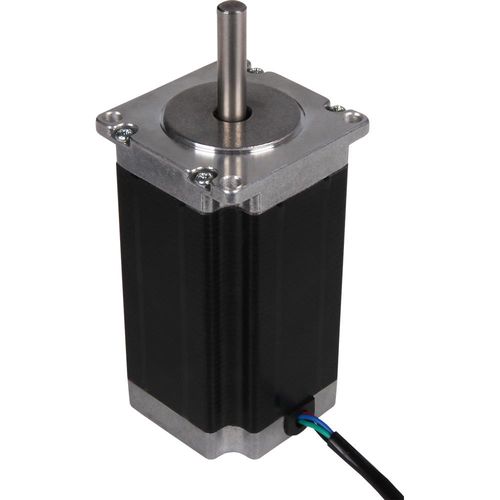

Joy-iT NEMA 23-03 Stepper motor
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 1 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| 3 pcs | Central Warehouse (new location) |
Delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 1 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| 3 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
2,39
Product description
This NEMA-23 stepper motor suits for your project, anyhow with CNC or robotics, if you're looking for high performance. This motor stands out with its high holding torque of 3 Nm .
Specification 57SHD4934-34B
Shaft dimensions Ø 7,5 x 32 mm (single shaft)
Connection 4 -core cable
Steps per revolution 200
Holding torque 3 Nm
Rated voltage 8.4 V
Rated current 3 A
Step angle 1.8°
Amount of phases 2
Phase resistance 2.8 Ω
Phase inductivity 4.2 mH
Isolation resistance Min. 100 MΩ at 500 V DC
Isolation class B (130°)
Rotational inertia 260 g·cm²
Detent torque 0,04 Nm
Operating temperature -10 - 50 °C
Useful information
Specifications
Supplier product description
This motor stands out with its high holding torque of 3 Nm .
Technical data:
Specification: 57SHD4934-34B
Shaft dimensions: Ø 7,5 x 32 mm (single shaft)
Connection: 4 -core cable
Steps per revolution: 200
Holding torque: 3 Nm
Rated voltage: 8.4 V
Rated current: 3 A
Step angle: 1.8°
Amount of phases: 2
Phase resistance: 2.8 Ω
Phase inductivity: 4.2 mH
Isolation resistance: Min. 100 MΩ at 500 V DC
Isolation class: B (130°)
Rotational inertia: 260 g·cm²
Detent torque: 0,04 Nm
Operating temperature: -10 - 50 °C
