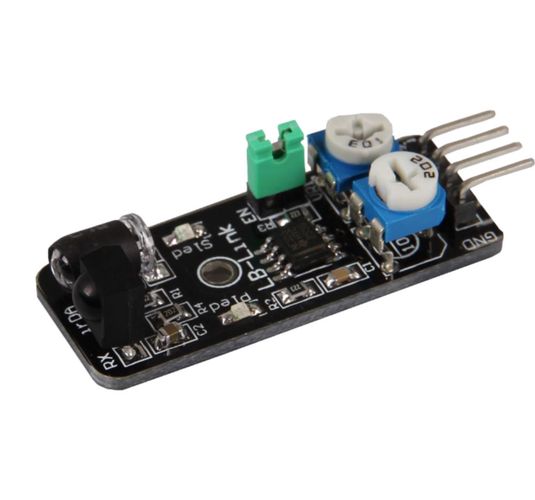

Joy-iT KY032 Infrared proximity sensor
Product Code: SEN-KY032IR
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Joy-iT KY032 Infrared proximity sensor
Useful information
Specifications
Supplier product description
The KY032IR sensor is an infrared proximity sensor.
It detects an obstacle with the help of the transmitter (infrared light) and receiver (photodiode) by reflection of the surface.
The determined value 0/1 ( true/false ) is sent as a digital signal to the microcontroller.
With the help of the potentiometers the strength of the transmitter and the sensitivity of the receiver can be adjusted.
The distance for triggering the sensor can be adjusted by the settings made.
Additionally the sensor has a PIN "Enable" and a jumper "EN".
The jumper is plugged in as standard, which means that permanent obstacle detection is executed.
To deactivate permanent obstacle detection, the jumper must be removed and the PIN "Enable" for the control signal connected.
The sensor is suitable for controlling autonomous robots.
It detects an obstacle with the help of the transmitter (infrared light) and receiver (photodiode) by reflection of the surface.
The determined value 0/1 ( true/false ) is sent as a digital signal to the microcontroller.
With the help of the potentiometers the strength of the transmitter and the sensitivity of the receiver can be adjusted.
The distance for triggering the sensor can be adjusted by the settings made.
Additionally the sensor has a PIN "Enable" and a jumper "EN".
The jumper is plugged in as standard, which means that permanent obstacle detection is executed.
To deactivate permanent obstacle detection, the jumper must be removed and the PIN "Enable" for the control signal connected.
The sensor is suitable for controlling autonomous robots.
Technical data:
Model: Obstacle sensor
Function: detects obstacles by means of infrared (0/1 signal output when exceeding the limited value)
Detection distance: 2 - 20 cm
Special feature: Can be switched on and off via a controller using a separate pin (Enable-Pin)
Supply voltage: 3 - 5 V
Current consumption: at 3 V: approx.10 mA at 5 V. approx. 6 mA
Detection angle: 35 °
Operating temperature: -10 - 50 °C
Useful information
Supplier parameters
Product code
SEN-KY032IR
Brand
Joy-iT
Supplier's product code
SEN-KY032IR
Product ID
U-2315012
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
