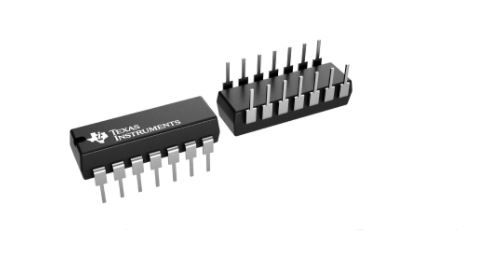

Integrated circuit CD40106 DIP14 RoHS
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 3 pcs | Vilnius Žirmūnai Store |
| 4 pcs | Vilnius Naujamiestis Store |
| 7 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 5 pcs | Šiauliai Store |
| >50 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 3 pcs | Vilnius Žirmūnai Store |
| 4 pcs | Vilnius Naujamiestis Store |
| 7 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 5 pcs | Šiauliai Store |
| >50 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | €3.49 |
To €70.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description
Useful information
Specifications
Experimental product description generated by artificial intelligence
Integrated circuit CD40106 DIP14 RoHS
The CD40106B is a CMOS Hex Schmitt-Trigger Inverter from Texas Instruments. This integrated circuit is part of the Logic ICs category and is RoHS compliant.
Main Parameters and Functions
This device consists of six Schmitt-Trigger inverters. Each circuit functions as an inverter with a Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between these points is defined as hysteresis voltage.
- Schmitt-Trigger Inputs
- Hysteresis Voltage (Typical): 0.9 V at VDD = 5 V, 2.3 V at VDD = 10 V, 3.5 V at VDD = 15 V
- Noise Immunity Greater Than 50%
- Standardized, Symmetrical Output Characteristics
- Low Power Consumption
Uses
The CD40106B is suitable for a variety of applications, including:
- Wave and Pulse Shapers
- High-Noise-Environment Systems
- Monostable Multivibrators
- Astable Multivibrators
Why Choose This Product?
The CD40106B offers several key advantages:
- Reliable performance
- Wide operating voltage range
- Low power consumption
- High noise immunity
- Standardized symmetrical output characteristics
| Part Number | Package | Body Size (Nom) |
|---|---|---|
| CD40106BF | CDIP (14) | 6.92 mm x 19.94 mm |
| CD40106BE | PDIP (14) | 6.30 mm x 19.31 mm |
| CD40106BM | SOIC (14) | 3.90 mm x 8.65 mm |
| CD40106BNSR | SO (14) | 5.30 mm x 10.20 mm |
| CD40106BPWR | TSSOP (14) | 4.40 mm x 5.00 mm |
Note: This description is based on available data and may not include all possible features or specifications. Please refer to the datasheet for complete information.
