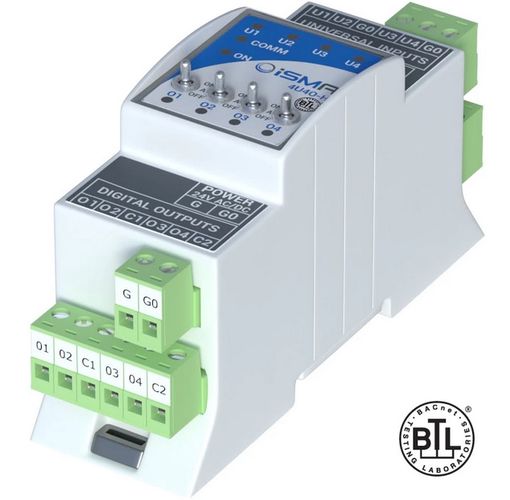

Išplėtimo modulis iSMA-B-4U4O-H, 4 universalūs įėjimai, 4 skaitmeniniai išėjimai su rankiniu valdymu, Modbus RTU/ASCII, BACnet MSTP
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 1 pcs | Vilnius Žirmūnai Store |
 Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 1 pcs | Vilnius Žirmūnai Store |
| Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€1.99
Product description
I/O MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINI can be chosen, all inputs and outputs are unified among our products. One feature that makes these two product groups different is hand operating switches, in some applications, it is required. Moreover, all I/O modules have BTL and UL certificates.
Like in the case of the MIX modules with RS485 and IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.
MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.
Thanks to supporting open communication standards MINI modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.
