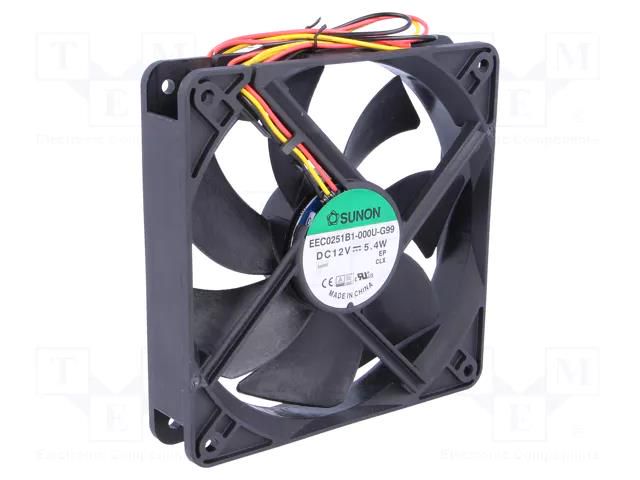

Fan: DC; axial; 12VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; ball SUNON
Product Code: EEC0251B1-G99
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 103 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Fan: DC; axial; 12VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; ball
Useful information
Supplier parameters
Product code
EEC0251B1-G99
Brand
SUNON
Supplier's product code
EEC0251B1-G99
Product ID
U-176665
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.451A
Enclosure material
thermoplastic
Fan dimensions
120x120x25mm
Fan efficiency
183.83m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.33m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
5.4W
Rotational rate/speed
3100 (±10%)rpm
Signal output
F type
Static pressure
7.11mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
