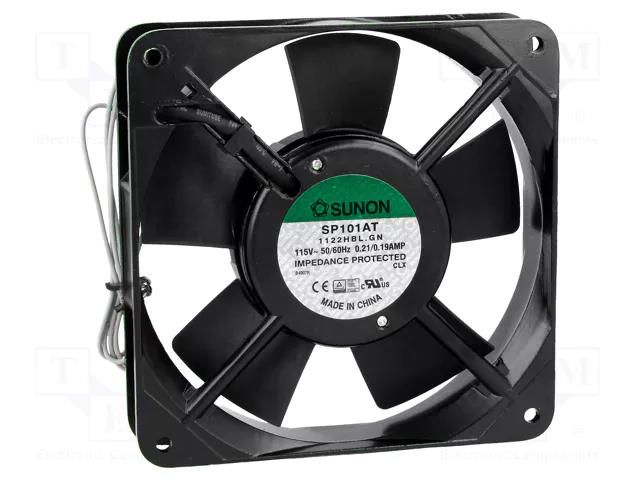

Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball SUNON
Product Code: SP101AT1122HBL
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 100 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 115VAC; 120x120x25mm; 132m3/h(±7%); 46dBA; ball
Useful information
Supplier parameters
Product code
SP101AT1122HBL
Supplier's product code
SP101AT1122HBL
Product ID
U-335369
Current and power consumption tolerance
±15%
Current rating
0.18A
Enclosure material
aluminium
Fan dimensions
120x120x25mm
Fan efficiency
132m<sup>3</sup>/h (±7%)
Flammability rating
UL94V-0
Frequency
60Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
46dBA
Operating temperature
-10...70°C
Power consumption
18W
Rotational rate/speed
2300rpm
Static pressure
4.06mm H<sub>2</sub>O
Supply voltage
115V AC
Type of fan
AC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
