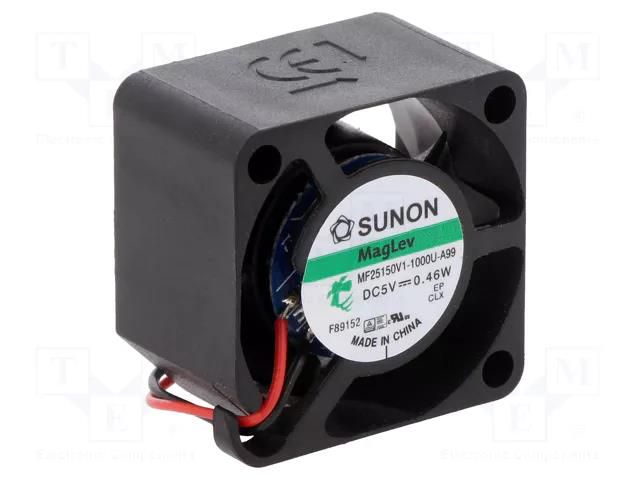

Fan: DC; axial; 5VDC; 25x25x15mm; 5.24m3/h; 20dBA; Vapo; 10000rpm SUNON
Product Code: MF25150V1-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 339 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Fan: DC; axial; 5VDC; 25x25x15mm; 5.24m3/h; 20dBA; Vapo; 10000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 5VDC; 25x25x15mm; 5.24m3/h; 20dBA; Vapo; 10000rpm
Useful information
Supplier parameters
Product code
MF25150V1-A99-A
Additional functions
autorestart
Current rating
85mA
Enclosure material
thermoplastic
Fan dimensions
25x25x15mm
Fan efficiency
5.24m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.15m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
20dBA
Operating temperature
-10...70°C
Operating voltage
2.5...6V DC
Power consumption
0.43W
Rotational rate/speed
10000rpm
Static pressure
4.06mm H<sub>2</sub>O
Supply voltage
5V DC
Type of fan
DC
Wire size
28AWG
Supplier's product code
MF25150V1-A99-A
Product ID
U-255945
Brand
SUNON
