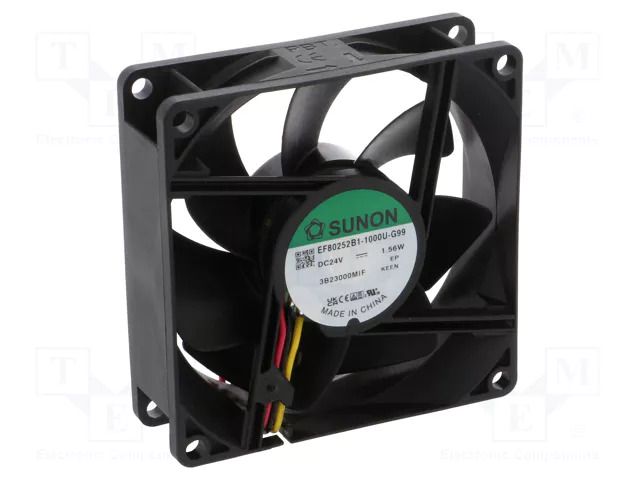

Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type SUNON
Product Code: EF80252B1-G99
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type
Useful information
Supplier parameters
Product code
EF80252B1-G99
Brand
SUNON
Supplier's product code
EF80252B1-G99
Product ID
U-2328425
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
65mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
69.5m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.315m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
33dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.56W
Rotational rate/speed
3200rpm
Signal output
F type
Supply voltage
24V DC
Type of fan
DC
