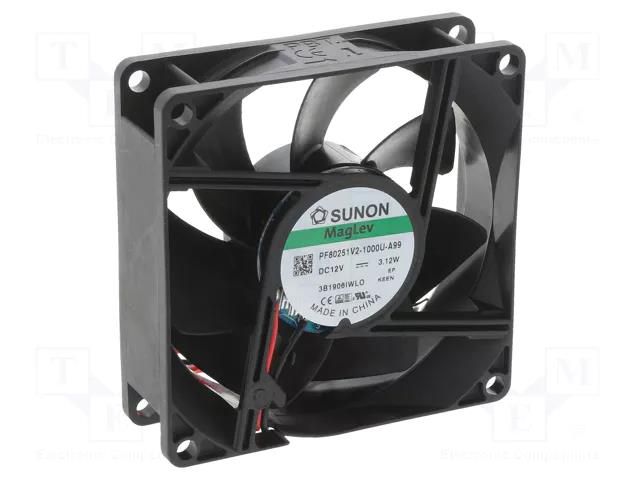

Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm SUNON
Product Code: PF80251V2-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 34 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm
Useful information
Supplier parameters
Product code
PF80251V2-A99-A
Supplier's product code
PF80251V2-A99-A
Product ID
U-286940
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.24A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
96.85m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.315m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
43.1dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
3.12W
Rotational rate/speed
4500rpm
Static pressure
8.88mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
