Fan: DC; axial; 12VDC; 40x40x20mm; 15.12m3/h; 26.5dBA; ball; 26AWG SUNON
Product Code: EF40201B1-G99

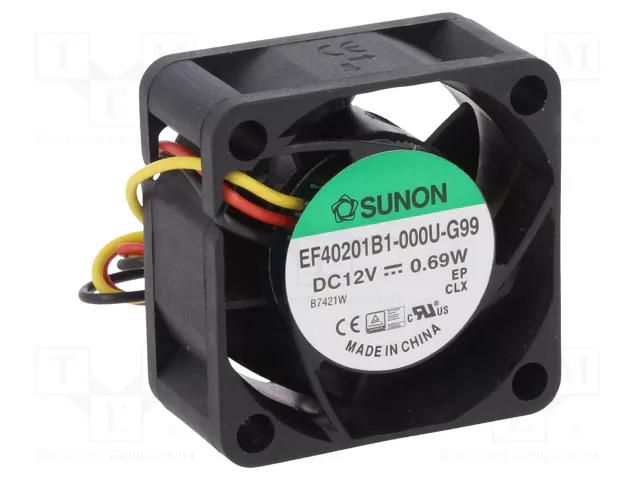

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-05 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2560 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | €3.49 |
To €70.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.12m3/h; 26.5dBA; ball; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.12m3/h; 26.5dBA; ball; 26AWG
Useful information
Supplier parameters
Product code
EF40201B1-G99
Brand
SUNON
Supplier's product code
EF40201B1-G99
Product ID
U-177600
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
46mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
15.12m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.305m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
26.5dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.56W
Rotational rate/speed
6300 (±15%)rpm
Signal output
F type
Static pressure
5.59mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
