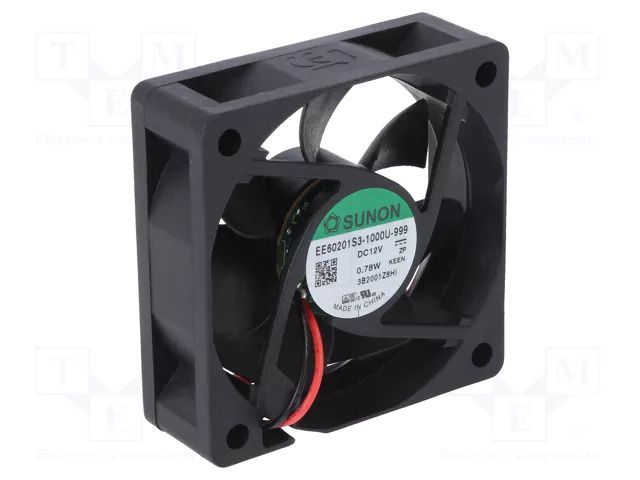

Fan: DC; axial; 12VDC; 60x60x20mm; 28.54m3/h; 22dBA; slide; 3200rpm SUNON
Product Code: EE60201S3-999
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1333 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Fan: DC; axial; 12VDC; 60x60x20mm; 28.54m3/h; 22dBA; slide; 3200rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 60x60x20mm; 28.54m3/h; 22dBA; slide; 3200rpm
Useful information
Supplier parameters
Supplier's product code
EE60201S3-999
Product ID
U-1871792
Current and power consumption tolerance
±15%
Current rating
58mA
Enclosure material
thermoplastic
Fan dimensions
60x60x20mm
Fan efficiency
28.54m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Lead length
0.29m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
22dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.7W
Rotational rate/speed
3200rpm
Supply voltage
12V DC
Type of fan
DC
Product code
EE60201S3-999
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
